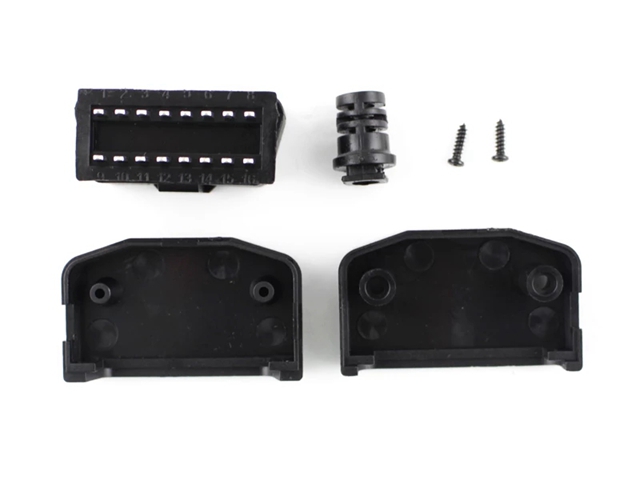

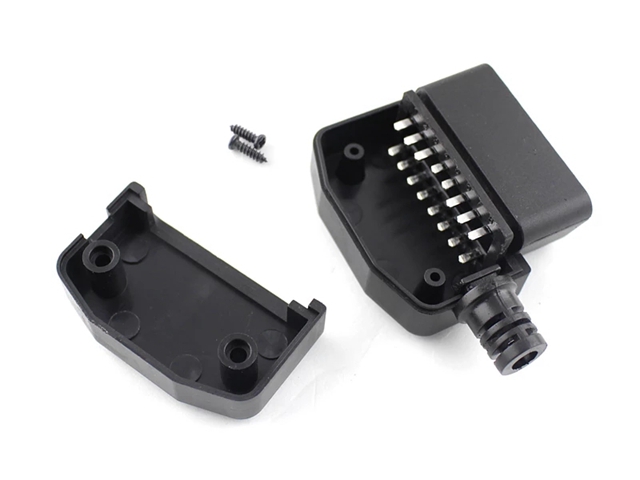

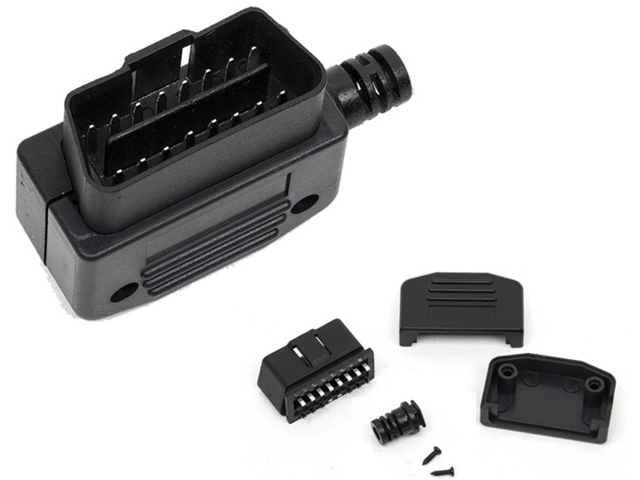

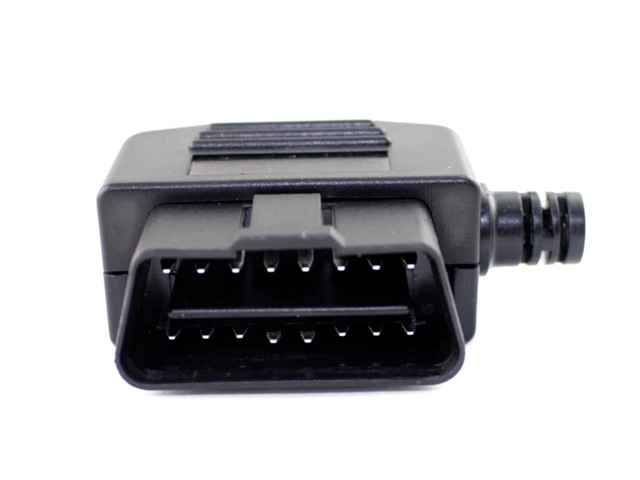

OBD II 16P Male plug connector Right

Material:
Housing: ABS,UL94V-0,Color Black
SR: Neylon,UL94V-0,Color Black
Terminal: Brass,Nickel plated

Electrical Characteristics:
Dielectric Strength: 1000V AC/1 Minute
Contact Resistance: 100mΩ Max
Insulator Resistance: 500VDC,100MΩ Min

Rateing and Application Wire:
Rated Voltage: 30V Max
Rated Current: 5Amps
Ambient Temperature Range: -40℃ ~ +85℃

KLS1-OBDII-16P-90.pdf
