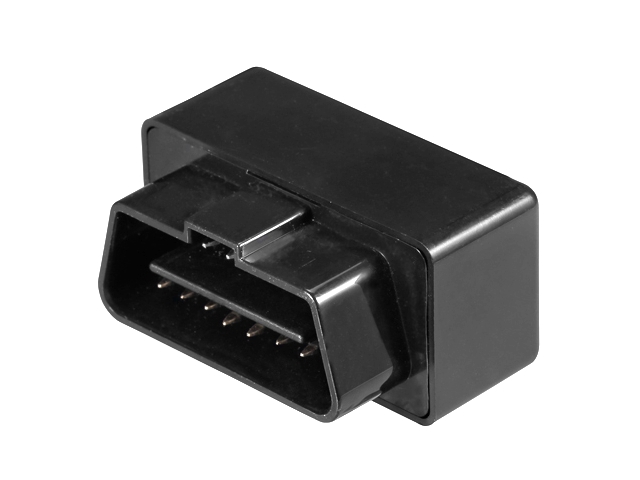

OBD II 16P Male plug connector

  • Model: KLS1-OBDII-16MLB
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

OBD II 16P Male plug connector

Material:
1.Cover: ABS 94V-0, Color:Black
2.Connector:PBT 94V-0,Color:Black
3.Terminal:Brass, Nickel plated

Electrical Characteristics:
Dielectric Strength:1000V AC/1 Minute
Contact Resistance:100mΩ Max
Insulator Resistance:500VDC,100MΩ Min

Rateing and Application Wire:
Rated Voltage : 30V Max
Rated Current:5Amps
Ambient Temperature Range:-40℃ ~ +85℃
