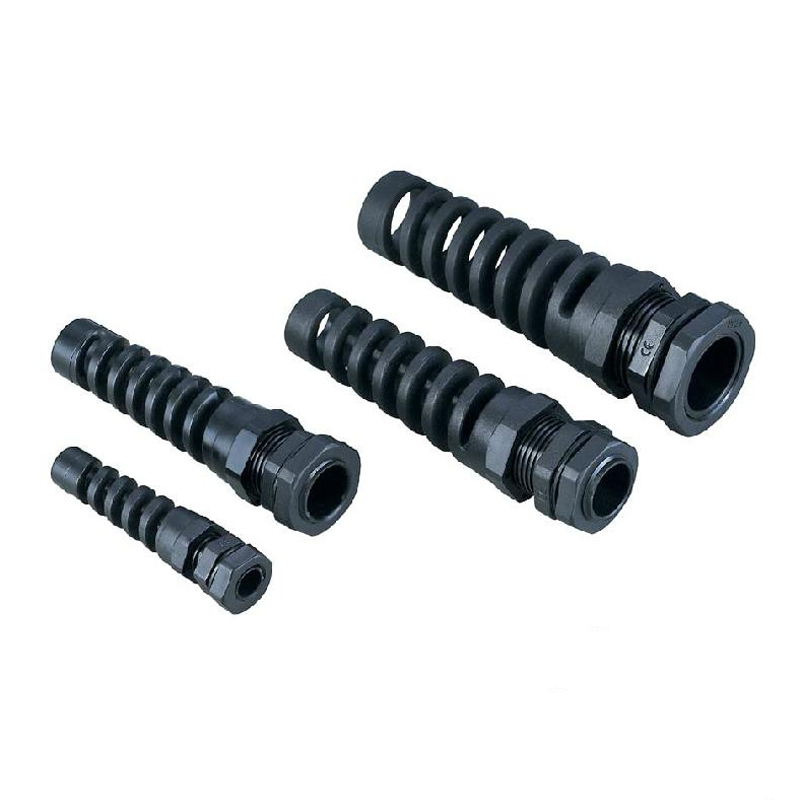

Nylon Cable Gland Strain Relief(PG/Metr Long Type)
- Product Details
Oder Information
KLS8-0609L-PG-7-B
0609L: PG /Metr Long Type Nylon Cable Glands With Strain Relief
PG-7: Item No.
B: Color Code: B-Black G-Gray
Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color: Black , light grey
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| PG-7 | 3~6.5 | 12.5 | 12.5~12.8 | 15 | 65 | 16 |
| PG-7S | 2~5 | 12.5 | 12.5~12.8 | 15 | 65 | 16 |
| PG-9 | 4~8 | 15.2 | 15.2~15.5 | 15 | 70 | 19 |
| PG-9S | 2~6 | 15.2 | 15.2~15.5 | 15 | 70 | 19 |
| PG-11 | 5~10 | 18.6 | 18.6~18.9 | 15 | 78 | 22 |
| PG-11S | 3~7 | 18.6 | 18.6~18.9 | 15 | 78 | 22 |
| PG-13.5 | 6~12 | 20.4 | 20.4~20.7 | 15 | 90 | 24 |
| PG-13.5S | 5~9 | 20.4 | 20.4~20.7 | 15 | 90 | 24 |
| PG-16 | 10~14 | 22.5 | 22.5~22.8 | 15 | 100 | 27 |
| PG-16S | 7~12 | 22.5 | 22.5~22.8 | 15 | 100 | 27 |
| PG-21 | 13~18 | 28.3 | 28.3~28.6 | 15 | 112 | 33 |
| PG-21S | 9~16 | 28.3 | 28.3~28.6 | 15 | 112 | 33 |
| M12 x 1.5 | 3~6.5 | 12 | 12~12.3 | 15 | 65 | 16 |
| M12 x 1.5S | 2~5 | 12 | 12~12.3 | 15 | 65 | 16 |
| M16 x 1.5 | 4~8 | 16 | 16~16.3 | 15 | 70 | 19 |
| M16 x 1.5S | 2~6 | 16 | 16~16.3 | 15 | 70 | 19 |
| M18 x 1.5 | 5~10 | 18 | 18~18.3 | 15 | 78 | 22 |
| M18 x 1.5S | 3~7 | 18 | 18~18.3 | 15 | 78 | 22 |
| M20 x 1.5 | 6~12 | 20 | 20~20.3 | 15 | 90 | 24 |
| M20 x 1.5S | 5~9 | 20 | 20~20.3 | 15 | 90 | 24 |
| M22 x 1.5 | 10~14 | 22 | 22~22.3 | 15 | 100 | 27 |
| M22 x 1.5S | 7~12 | 22 | 22~22.3 | 15 | 100 | 27 |
| M25 x 1.5 | 13~18 | 25 | 25~25.3 | 15 | 112 | 33 |
| M25 x 1.5S | 9~16 | 25 | 25~25.3 | 15 | 112 | 33 |
| M27 x 1.5 | 13~18 | 27 | 27~27.3 | 15 | 112 | 33 |
| M27 x 1.5S | 9~16 | 27 | 27~27.3 | 15 | 112 | 33 |
