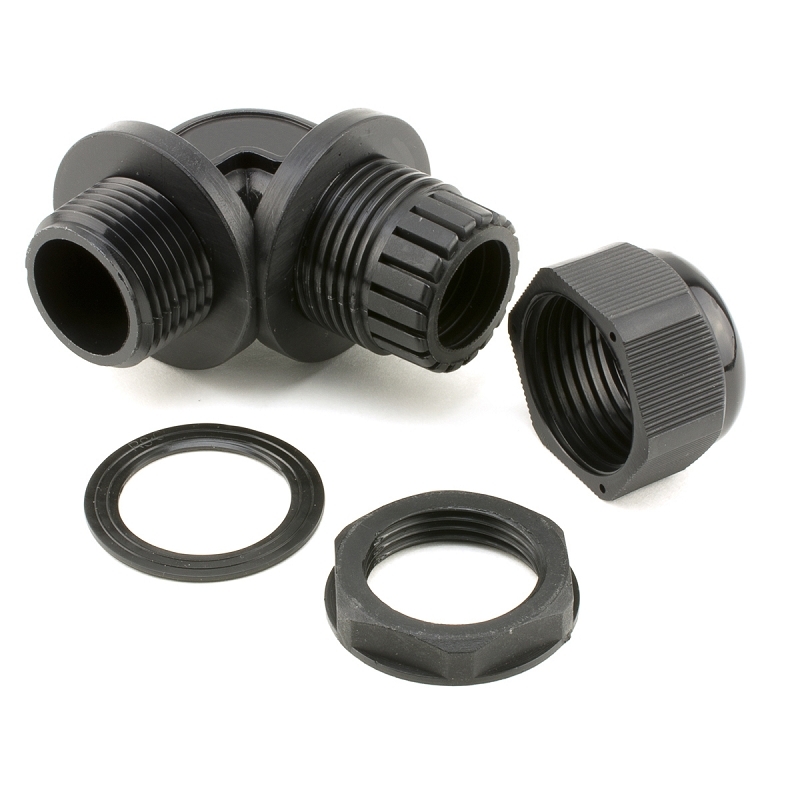

Nylon Cable Gland Right angle(PG Metr NPT Type)

  • Model: KLS8-0611
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Oder Information
KLS8-0611-PG-9-B

0611: Right angle Nylon Cable Glands
PG-9: Item No.
B: Color Code:  B-Black    G-Gray

Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color:  Black , light grey

Item No. Cable
Range
>IØI<
(mm)
Outer
diameter
of thread
(mm)
Mounting hole diameter
(mm)
Thread
length
L(mm)
Joint
length
H(mm)
Wrench diameter
(MM)
    PG-9 4~8 15.2 15.2~15.5 8 37 19
    PG-9S 2~6 15.2 15.2~15.5 8 37 19
    PG-11 5~10 18.6 18.6~18.9 8 39 22
    PG-11S 3~7 18.6 18.6~18.9 8 39 22
    PG-13.5 6~12 20.4 20.4~20.7 9 43 24
    PG-13.5S 5~9 20.4 20.4~20.7 9 43 24
    PG-16 10~14 22.5 22.5~22.8 10 48 27
    PG-16S 7~12 22.5 22.5~22.8 10 48 27
    PG-21 13~18 28.3 28.3~28.6 11 56 33
    PG-21S 9~16 28.3 28.3~28.6 11 56 33
    PG-29 18~25 37 37~37.3 11 68 41
    PG-29S 13~20 37 37~37.3 11 68 41

    M16 x 1.5 4~8 16 16~16.3 8 37 19
    M16 x 1.5S 2~6 16 16~16.3 8 37 19
    M18 x 1.5 5~10 18 18~18.3 8 39 22
    M18 x 1.5S 3~7 18 18~18.3 8 39 22
    M20 x 1.5 6~12 20 20~20.3 9 43 24
    M20 x 1.5S 5~9 20 20~20.3 9 43 24
    M22 x 1.5 10~14 22 22~22.3 10 48 27
    M22 x 1.5S 7~12 22 22~22.3 10 48 27
    M25 x 1.5 13~18 25 25~25.3 11 56 33
    M25 x 1.5S 9~16 25 25~25.3 11 56 33
    M32 x 1.5 18~25 32 32~32.3 11 68 41
    M32 x 1.5S 13~20 32 32~32.3 11 68 41

    NPT-3/8 4~8 17 15.2~15.5 13 42 19
    NPT-3/8S 2~6 17 15.2~15.5 13 42 19
    NPT-1/2 6~12 21.2 18.6~18.9 13 43 24
    NPT-1/2S 5~9 21.2 18.6~18.9 13 43 24
    NPT-3/4 13~18 26.2 20.4~20.7 13 58 33
    NPT-3/4S 9~16 26.2 20.4~20.7 13 58 33
    NPT1 18~25 33.3 33.3~33.6 15 72 41
    NPT1 13~20 33.3 33.3~33.6 15 72 41
