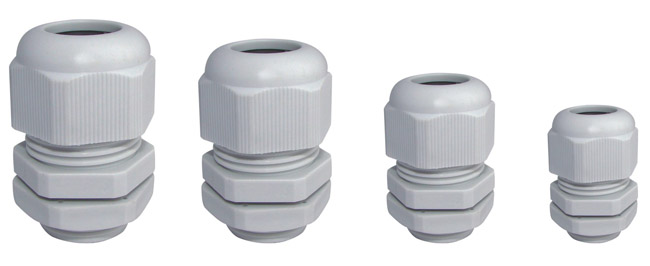

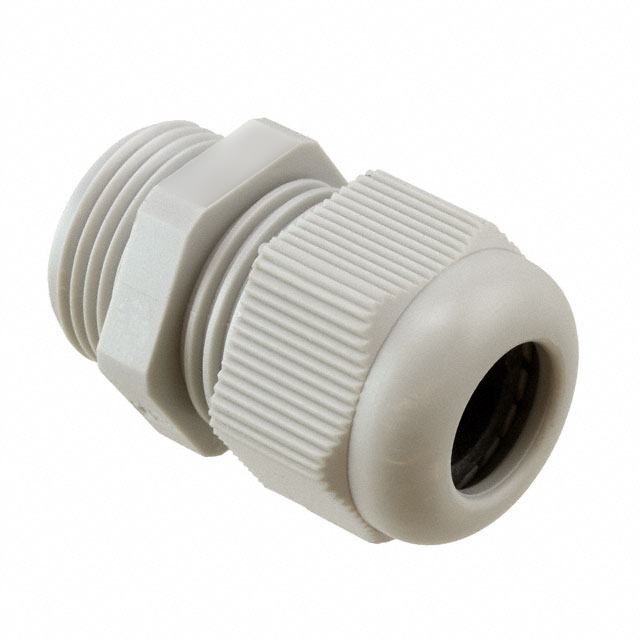

Nylon Cable Gland (PG Long Type)
- Product Details
Oder Information
KLS8-0627-PG-7-B
0627: PG Long Type Nylon Cable Glands
PG-7: Item No.
B: Color Code: B-Black G-Gray
Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color: Black , light grey
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| PG-7 | 3~6.5 | 12.5 | 12.5~12.8 | 15 | 22 | 16 |
| PG-7S | 2~5 | 12.5 | 12.5~12.8 | 15 | 22 | 16 |
| PG-9 | 4~8 | 15.2 | 15.2~15.5 | 15 | 26 | 19 |
| PG-9S | 2~6 | 15.2 | 15.2~15.5 | 15 | 26 | 19 |
| PG-11 | 5~10 | 18.6 | 18.6~18.9 | 15 | 27 | 22 |
| PG-11S | 3~7 | 18.6 | 18.6~18.9 | 15 | 27 | 22 |
| PG-13.5 | 6~12 | 20.4 | 20.4~20.7 | 15 | 28 | 24 |
| PG-13.5S | 5~9 | 20.4 | 20.4~20.7 | 15 | 28 | 24 |
| PG-16 | 10~14 | 22.5 | 22.5~22.8 | 15 | 30 | 27 |
| PG-16S | 7~12 | 22.5 | 22.5~22.8 | 15 | 30 | 27 |
| PG-19 | 12~16 | 24 | 24~24.3 | 15 | 30 | 27 |
| PG-19S | 10~13 | 24 | 24~24.3 | 15 | 30 | 27 |
| PG-21 | 13~18 | 28.3 | 28.3~28.6 | 15 | 35 | 33 |
| PG-21S | 9~16 | 28.3 | 28.3~28.6 | 15 | 35 | 33 |
| PG-25 | 16~21 | 30 | 30~30.3 | 15 | 34 | 35 |
| PG-25S | 13~18 | 30 | 30~30.3 | 15 | 34 | 35 |
| PG-29 | 18~25 | 37 | 37~37.3 | 18 | 40 | 42 |
| PG-29S | 13~20 | 37 | 37~37.3 | 18 | 40 | 42 |
| PG-36 | 22~32 | 47 | 47~47.3 | 18 | 48 | 52 |
| PG-36S | 20~26 | 47 | 47~47.3 | 18 | 48 | 52 |
| PG-42 | 32~38 | 54 | 54~54.3 | 18 | 49 | 60 |
| PG-42S | 25~31 | 54 | 54~54.3 | 18 | 49 | 60 |
| PG-48 | 37~44 | 59.3 | 59.3~59.6 | 18 | 50 | 64 |
| PG-48S | 29~35 | 59.3 | 59.3~59.6 | 18 | 50 | 64 |
