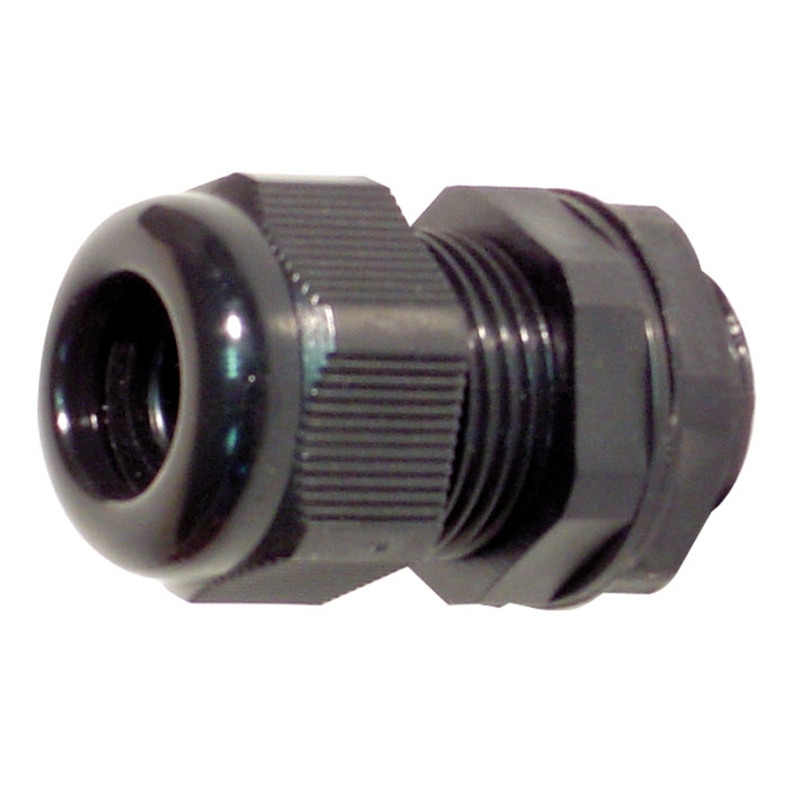

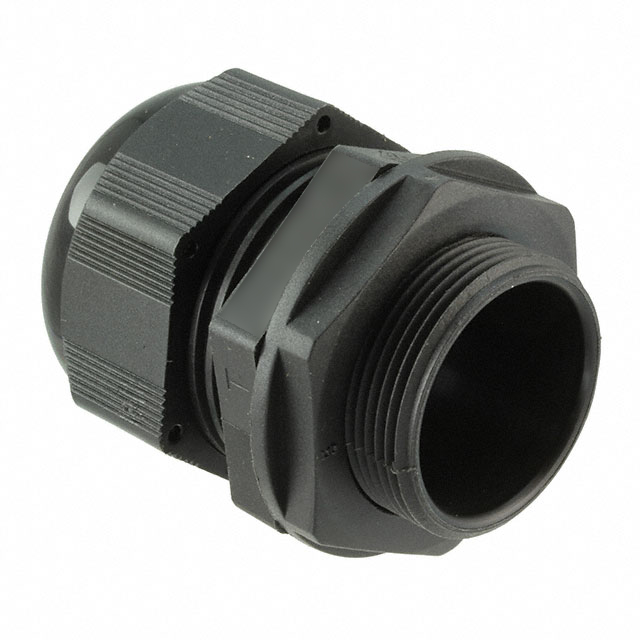

Nylon Cable Gland (MG Type)
- Product Details
Oder Information
KLS8-0616-MG12-B
0616: MG Type Nylon Cable Glands
MG12: Item No.
B: Color Code: B-Black G-Gra
Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color: Black , light grey
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| MG12 | 4.5~8 | 12 | 12~12.3 | 9 | 18 | |
| MG12S | 3~5.3 | 12 | 12~12.3 | 9 | 18 | |
| MG16 | 6~10 | 16 | 16~16.3 | 15 | 22 | |
| MG16S | 4~7 | 16 | 16~16.3 | 15 | 22 | |
| MG20 | 9~14 | 20 | 20~20.3 | 15 | 27 | |
| MG20S | 6~11 | 20 | 20~20.3 | 15 | 27 | |
| MG25 | 13~18 | 25 | 25~25.3 | 15 | 33 | |
| MG25S | 10~16 | 25 | 25~25.3 | 15 | 33 | |
| MG32 | 18~25 | 32 | 32~32.3 | 15 | 41 | |
| MG32S | 15~22 | 32 | 32~32.3 | 15 | 41 | |
| MG40 | 24~30 | 40 | 40~40.3 | 20 | 50 | |
| MG40S | 20~25 | 40 | 40~40.3 | 20 | 50 | |
| MG50 | 30~40 | 50 | 50~50.3 | 23 | 62 | |
| MG50S | 26~32 | 50 | 50~50.3 | 23 | 62 | |
| MG63 | 40~50 | 63 | 63~63.3 | 24 | 75 | |
| MG63S | 38~46 | 63 | 63~63.3 | 24 | 75 |
