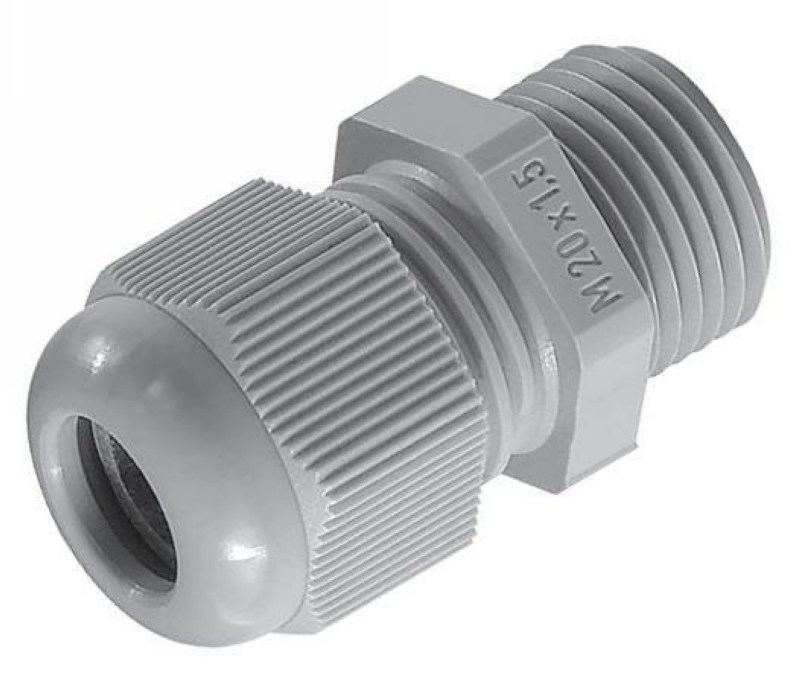

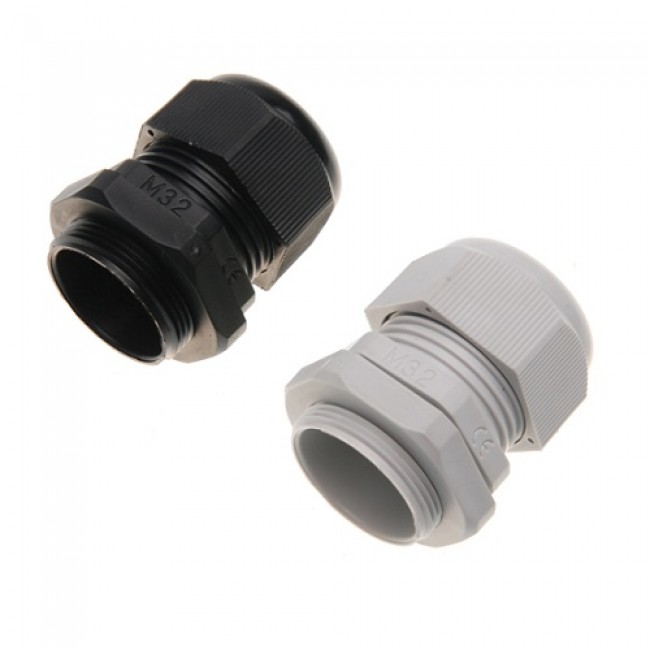

Nylon Cable Gland (M Long Type)
- Product Details
Oder Information
KLS8-0624-M12x1.5-B
0624: M Long Type Nylon Cable Glands
M12x1.5: Item No.
B: Color Code: B-Black G-Gray
Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color: Black , light grey
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| M12 x 1.5 | 3~6.5 | 12 | 12~12.3 | 15 | 22 | 16 |
| M12 x 1.5S | 2~5 | 12 | 12~12.3 | 15 | 22 | 16 |
| M16 x 1.5 | 4~8 | 16 | 16~16.3 | 15 | 26 | 19 |
| M16 x 1.5S | 2~6 | 16 | 16~16.3 | 15 | 26 | 19 |
| M18 x 1.5 | 5~10 | 18 | 18~18.3 | 15 | 27 | 22 |
| M18 x 1.5S | 3~7 | 18 | 18~18.3 | 15 | 27 | 22 |
| M20 x 1.5 | 6~12 | 20 | 20~20.3 | 15 | 28 | 24 |
| M20 x 1.5S | 5~9 | 20 | 20~20.3 | 15 | 28 | 24 |
| M22 x 1.5 | 10~14 | 22 | 22~22.3 | 15 | 30 | 27 |
| M22 x 1.5S | 7~12 | 22 | 22~22.3 | 15 | 30 | 27 |
| M25 x 1.5 | 13~18 | 25 | 25~25.3 | 15 | 35 | 33 |
| M25 x 1.5S | 9~16 | 25 | 25~25.3 | 15 | 35 | 33 |
| M32 x 1.5 | 16~21 | 32 | 32~32.3 | 15 | 34 | 36 |
| M32 x 1.5S | 13~18 | 32 | 32~32.3 | 15 | 34 | 36 |
| M40 x 1.5 | 22~32 | 40 | 40~40.3 | 18 | 48 | 52 |
| M40 x 1.5S | 20~26 | 40 | 40~40.3 | 18 | 48 | 52 |
| M50 x 1.5 | 32~38 | 50 | 50~50.3 | 18 | 49 | 60 |
| M50 x 1.5S | 25~31 | 50 | 50~50.3 | 18 | 49 | 60 |
| M63 x 1.5 | 37~44 | 63 | 63~63.3 | 18 | 50 | 67 |
| M63 x 1.5S | 29~35 | 63 | 63~63.3 | 18 | 50 | 67 |
