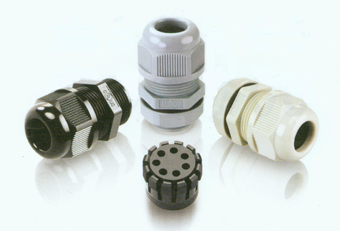

Nylon Cable Gland

●Material: UL approved Nylon 66, 94V-2.
● Color: Black,Gray colors.
● ambient temperature：quiescent state -40oC to 100oC，short time 120oC dynamic
※ Protection: IP68 ( oniy if the washer is assembled ) Unit：mm

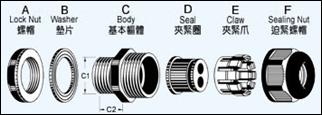

2 PINS	Threaded  Type		Products Type	Cable Range mm	Threaded  OD C1  mm	Threaded Length C2  mm	Spanner Size A & F  mm	boxing pcs
	M Type Short  Threaded (Metric Threaded)	M16 X 1.5	M16S-H2	3.1 ~ 2	16	10	22 / 19	50
			M16-H2-02-S	2.6 ~ 1.6	16	10	22 / 22	50
			M16-H2-03-S	3 ~ 2	16	10	22 / 22	50
			M16-H2-04-S	4.1 ~ 3	16	10	22 / 22	50
		M20 X 1.5	M20S-H2-02	2.6 ~ 1.6	20	10	24 / 22	50
			M20S-H2-03	3 ~ 2	20	10	24 / 22	50
			M20S-H2-04	4.1 ~ 3	20	10	24 / 22	50
			M20M-H2-05	5.2 ~ 3.5	20	15	24 / 24	50
			M20-H2-03-S	3.5 ~ 2.5	20	10	27 / 27	50
			M20-H2-04-S	4.3 ~ 3.3	20	10	27 / 27	50
			M20-H2-06-S	6.1 ~ 4.3	20	10	27 / 27	50
		M25 X 1.5	M25S-H2-03	3.5 ~ 2.5	25	12	33 / 27	50
			M25S-H2-04	4.3 ~ 3.3	25	12	33 / 27	50
			M25S-H2-06	6.1 ~ 4.3	25	12	33 / 27	50
			M25-H2-05-S	5.2 ~ 3.6	25	10	33 / 33	50
			M25-H2-06-S	6.5 ~ 5.1	25	10	33 / 33	50
			M25-H2-08-S	8.7 ~ 6.4	25	10	33 / 33	50
		M32 X 1.5	M32S-H2-05	5.2 ~ 3.6	32	12	41 / 33	10
			M32S-H2-06	6.5 ~ 5.1	32	12	41 / 33	10
			M32S-H2-08	8.7 ~ 6.4	32	12	41 / 33	10
			M32-H2-10-S	10 ~ 7.7	32	11	41 / 42	10
		M40 X 1.5	M40-H2-09-S	9 ~ 7	40	12	50 / 52	10
			M40-H2-13-S	13 ~ 11	40	12	50 / 52	10
	M Type Long  Threaded (Metric Threaded)	M12 X 1.5	M12-L2-03	3.1 ~ 2	12	9	18 / 19	50
		M16 X 1.5	M16-L2-02	2.6 ~ 1.6	16	15	22 / 22	50
			M16-L2-03	3 ~ 2	16	15	22 / 22	50
			M16-L2-04	4.1 ~ 3	16	15	22 / 22	50
		M20 X 1.5	M20-L2-03	3.5 ~ 2.5	20	15	27 / 27	50
			M20-L2-04	4.3 ~ 3.3	20	15	27 / 27	50
			M20-L2-06	6.1 ~ 4.3	20	15	27 / 27	50
		M25 X 1.5	M25-L2-05	5.2 ~ 3.6	25	15	33 / 33	50
			M25-L2-06	6.5 ~ 5.1	25	15	33 / 33	50
			M25-L2-08	8.7 ~ 6.4	25	15	33 / 33	50
		M32 X 1.5	M32-L2-10	10 ~ 7.7	32	15	41 / 42	10
		M40 X 1.5	M40-L2-09	9 ~ 7	40	20	50 / 52	10
			M40-L2-13	13 ~ 11	40	20	50 / 52	10
	PG Type Germany Threaded	PG 7	PG7-H2-03	3.1 ~ 2	12.5	8.5	17 / 19	50
		PG 9	PG9-H2-03	3.1 ~ 2	15.2	9	22 / 19	50
		PG 11	PG11-H2-02	2.2 ~ 1.6	18.6	10	24 / 22	50
			PG11-H2-03	3 ~ 2	18.6	10	24 / 22	50
			PG11-H2-04	4.1 ~ 3	18.6	10	24 / 22	50
		PG 13.5	PG13.5-H2-05	5.2 ~ 3.5	20.4	10	27 / 24	50
		PG 16	PG16-H2-03	3.5 ~ 2.5	22.5	11	30 / 27	50
			PG16-H2-04	4.3 ~ 3.3	22.5	11	30 / 27	50
			PG16-H2-06	6.1 ~ 4.3	22.5	11	30 / 27	50
		PG 21	PG21-H2-05	5.2 ~ 3.6	28.3	12.5	36 / 33	50
			PG21-H2-06	6.5 ~ 5.1	28.3	12.5	36 / 33	50
			PG21-H2-08	8.7 ~ 6.4	28.3	12.5	36 / 33	50
		PG 29	PG29-H2-10	10 ~ 7.7	37	12	46 / 42	10
		PG 36	PG36-H2-09	9 ~ 7	47	15	57 / 52	10
			PG36-H2-13	13 ~ 11	47	15	57 / 52	10
	G  Type U.K  Threaded	1/4	G13-H2-03	3.1 ~ 2	13.16	9	19 / 19	50
		3/8	G17-H2-02	2.6 ~ 1.6	16.66	10	22 / 22	50
			G17-H2-03	3 ~ 2	16.66	10	22 / 22	50
			G17-H2-04	4.1 ~ 3	16.66	10	22 / 22	50
		1/2	G21S-H2-02	2.6 ~ 1.6	20.95	10	27 / 22	50
			G21S-H2-03	3 ~ 2	20.95	10	27 / 22	50
			G21S-H2-04	4.1 ~ 3	20.95	10	27 / 22	50
			GA21M-H2-05	5.2 ~ 3.5	20.95	10	27 / 24	50
			G21L-H2-03	3.5 ~ 2.5	20.95	10	27 / 27	50
			G21L-H2-04	4.3 ~ 3.3	20.95	10	27 / 27	50
			G21L-H2-06	6.1 ~ 4.3	20.95	10	27 / 27	50
		3/4	G26S-H2-03	3.5 ~ 2.5	26.44	12	33 / 27	50
			G26S-H2-04	4.3 ~ 3.3	26.44	12	33 / 27	50
G26S-H2-06			6.1 ~ 4.3	26.44	12	33 / 27	50
G26-H2-05			5.2 ~ 3.6	26.44	12.5	33 / 33	50
G26-H2-06			6.5 ~ 5.1	26.44	12.5	33 / 33	50
G26-H2-08			8.7 ~ 6.4	26.44	12.5	33 / 33	50
1		G33S-H2-05	5.2 ~ 3.6	33.25	12	42 / 33	10
		G33S-H2-06	6.5 ~ 5.1	33.25	12	42 / 33	10
		G33S-H2-08	8.7 ~ 6.4	33.25	12	42 / 33	10
		G33-H2-10	10 ~ 7.7	33.25	15	42 / 42	10
1 1/4		G42-H2-09	9 ~ 7	41.91	15	53 / 52	10
		G42-H2-13	13 ~ 11	41.91	15	53 / 52	10
NPT Type America Threaded	NPT 3/8	NPT17-H2-02	2.6 ~ 1.6	17.05	13	22	50
		NPT17-H2-03	3 ~ 2	17.05	13	22	50
		NPT17-H2-04	4.1 ~ 3	17.05	13	22	50
	NPT 1/2	NPT21-H2-03	3.5 ~ 2.5	21.22	13	27	50
		NPT21-H2-04	4.3 ~ 3.3	21.22	13	27	50
		NPT21-H2-06	6.1 ~ 4.3	21.22	13	27	50
	NPT 3/4	NPT26-H2-05	5.2 ~ 3.6
