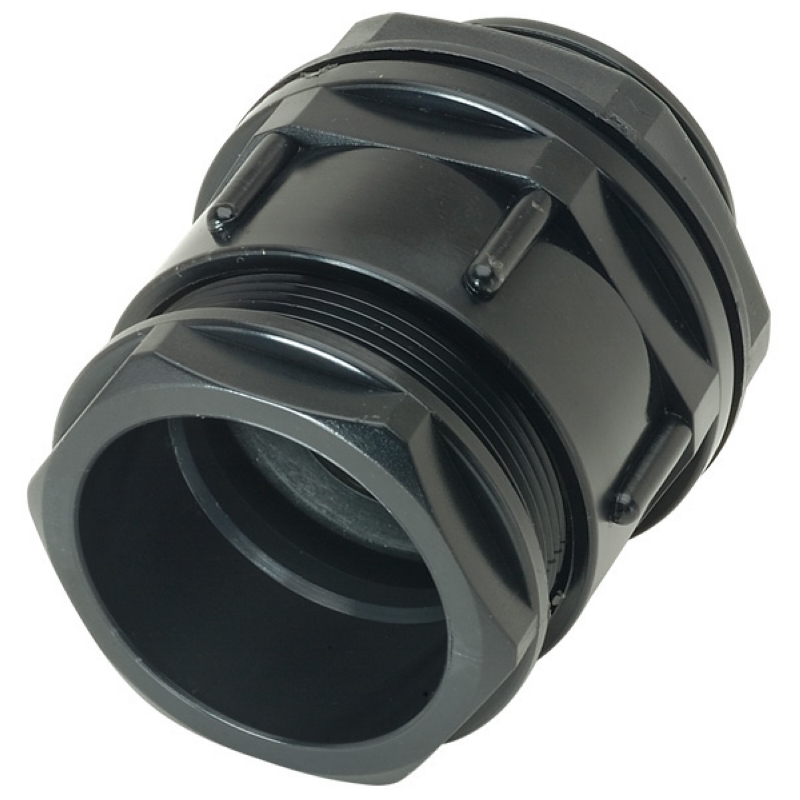

Nylon Cable Gland
- Product Details
Oder Information
KLS8-0613-PG-7-B
0613: Nylon Cable Glands
PG-7: Item No.
B: Color Code: B-Black G-Gray
Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color: Black , light grey
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| PG-7 | 5~7 | 12.5 | 12.5~12.8 | 8 | 16 | |
| PG-9 | 6~8 | 15.2 | 15.2~15.5 | 8 | 19 | |
| PG-11 | 8~10 | 18.6 | 18.6~18.9 | 8 | 22 | |
| PG-13.5 | 10~12 | 20.4 | 20.4~20.7 | 9 | 24 | |
| PG-16 | 12~14 | 22.5 | 22.5~22.8 | 10 | 27 | |
| PG-21 | 15~17 | 28.3 | 28.3~28.6 | 11 | 33 | |
| PG-29 | 24~26 | 37 | 37~37.3 | 11 | 42 | |
| PG-36 | 31~33 | 47 | 47~47.3 | 13 | 52 | |
| PG-42 | 39~41 | 54 | 54~54.3 | 13 | 60 | |
| PG-48 | 45~47 | 59.3 | 59.3~59.6 | 14 | 64 | |
| M12x1.5 | 5~7 | 12 | 12~12.3 | 8 | 19/16 | |
| M16x1.5 | 5~9 | 16 | 16~16.3 | 8 | 22/19 | |
| M18x1.5 | 7~11 | 18 | 18~18.3 | 8 | 24/22 | |
| M20x1.5 | 8~12 | 20 | 20~20.3 | 9 | 26/24 | |
| M25x1.5 | 12~18 | 25 | 25~25.3 | 11 | 33/29 | |
| M32x1.5 | 18~25 | 32 | 32~32.3 | 11 | 37/35 | |
| M40x1.5 | 26~33 | 40 | 40~40.3 | 13 | 52/50 | |
| M50x1.5 | 30~38 | 50 | 50~50.3 | 14 | 66/60 |
