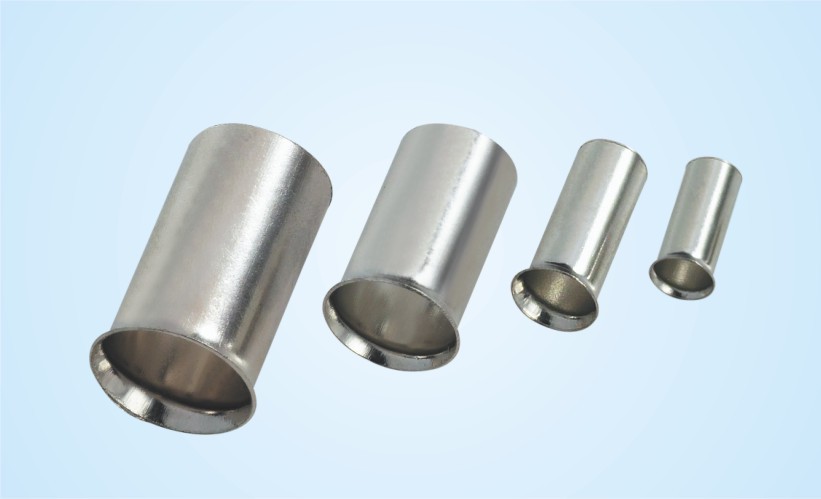

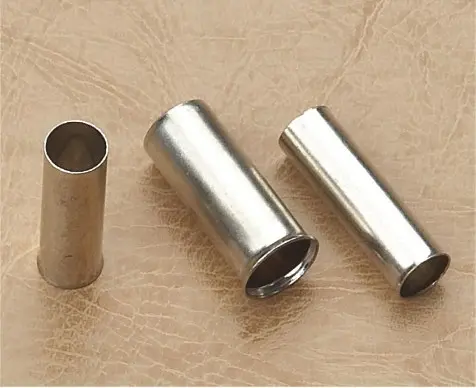

Non Insulated Cord End

  • Model: KLS8-01120
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
Wire Rang    DIMENSION
A.W.G ITEM  NO. L D C W
mm2   mm mm mm mm
24 A.W.G EN0306 6 1.1 0.8 1.5
0.3mm2 EN0308 8
  EN0505 5 1.3 1 1.7
22A.W.G EN0506 6
0.5mm2 EN0508 8
  EN0510 10
  EN0512 12
  EN7506 6 1.5 1.2 1.9
20A.W.G EN7508 8
0.75mm2 EN7510 10
  EN7512 12
  EN7515 15
  EN1006 6 1.7 1.4 2.2
18A.W.G EN1008 8
1.0mm2 EN1010 10
  EN1012 12
  EN1015 15
  EN1018 18
  EN1507 7 2 1.7 2.5
16A.W.G EN1508 8
1.5mm2 EN1510 10
  EN1512 12
  EN1515 15
  EN1518 18
  EN2506 6 2.6 2.3 3.3
14A.W.G EN2507 7
2.5mm2 EN2508 8
  EN2510 10
  EN2512 12
  EN2515 15
  EN2518 18
  EN4009 9 3.2 2.8 3.9
12A.W.G EN4010 10
4mm2 EN4012 12
  EN4015 15
  EN4018 18
Wire Rang    DIMENSION
A.W.G ITEM  NO. L D C W
mm2   mm mm mm mm
  EN6006 6 3.9 3.5 4.7
10A.W.G EN6010 10
6mm2 EN6012 12
  EN6015 15
  EN6018 18
  EN10-12 12 4.9 4.5 5.8
8A.W.G EN10-15 15
10mm2 EN10-16 16
  EN10-18 18
  EN10-12L 12 5.5 5 6.5
  EN16-12 12 6.2 5.8 7.2
6A.W.G EN16-15 15
16mm2 EN16-16 16
  EN16-18 18
  EN16-20 20
  EN16-22 22
  EN16-25 25
  EN16-30 30
  EN25-12 12 7.9 7.5 9.1
4A.W.G EN25-15 15
