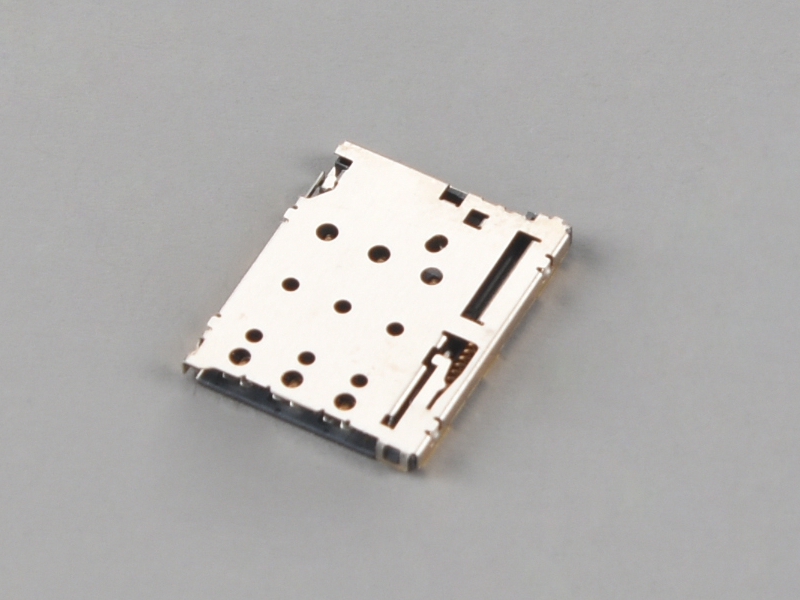

Nano SIM Card Connector,PUSH PUSH,6Pin,H1.25mm,with CD Pin
- Product Details
Nano SIM Card Connector,PUSH PUSH,6Pin,H1.25mm,with CD Pin
Material:
Contact:Copper Alloy.Au over Ni.
Housing:Glass Filled LCP.
Shell:Stainless.Au over Ni.GND Frame:Copper Alloy.Au over Ni.
Detection Switch:Copper Alloy.Au over Ni.Slide:Glass Filled Pa10t.
Spring:Stainless.
Hook:Stainless.
Electrical:
Rated current:0.5A Max
Rated Voltage:30V AC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Dielectric Withstanding Voltage:500VAC/minute.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC
