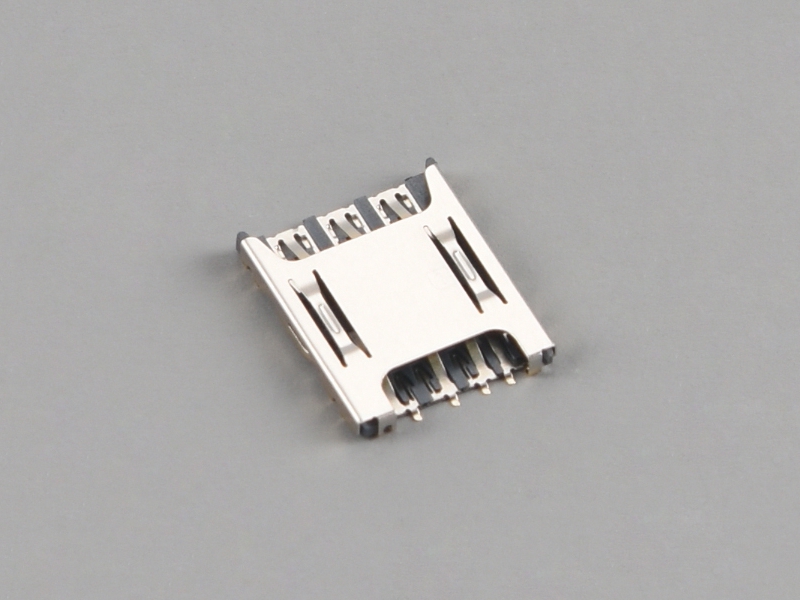

Nano SIM Card Connector,PUSH PULL,6Pin,H1.4mm,with CD Pin

Material:
Housing:Hi-Temperature Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy,selective 1u” Au on contact area.
Shell:Stainless Steel.selective Gold Flash on solder area.

Electrical:
Rated current:0.5A Max
Rated Voltage:30V AC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC/minute.

Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-092.pdf
