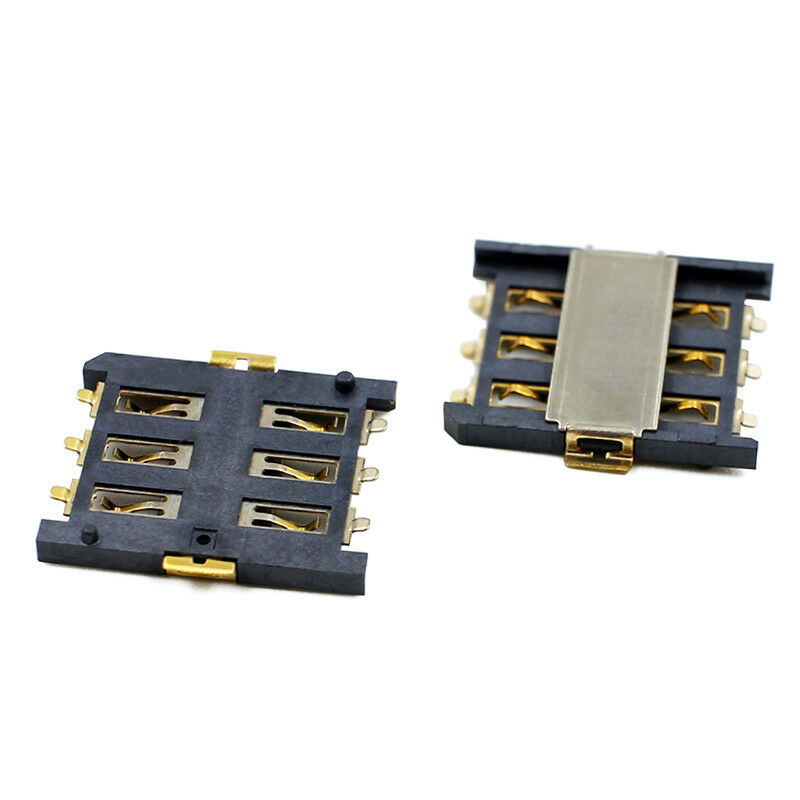

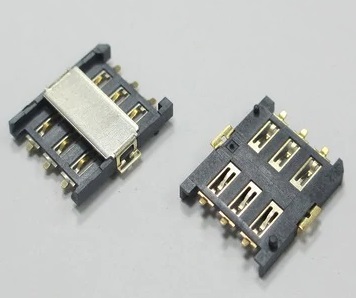

Nano SIM Card Connector;PUSH PULL,6Pin,H1.40mm

Material:
Insulator:LCP,UL94V-0.
Contact:C5210.Plated 50u” Ni Overall,Contact All Au 1u.
Shell:SUS,Plated 50u” Ni Overall,PAD Au 1u.
Electrical:
Current Rating:0.5A AC/DC max.
Voltage Rating:30V AC/DC
Contact Resistance:30mΩ Max.
Insulation Resistance:1000MΩ Min
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-113.pdf
