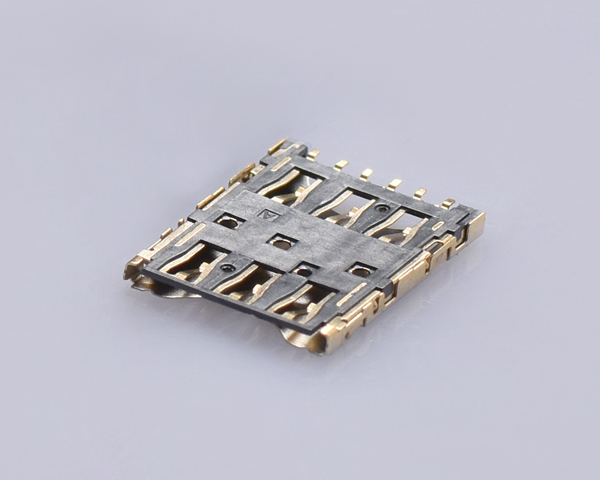

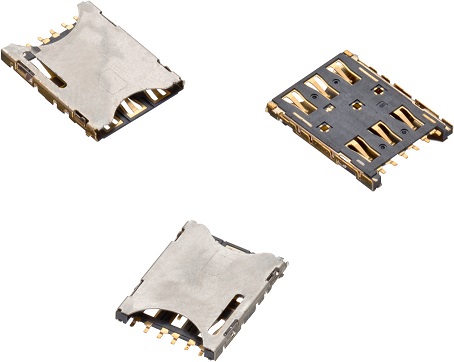

Nano SIM Card Connector;PUSH PULL,6Pin,H1.2mm
- Product Details
Material:
Housing:High Temp.Thermoplastic,UL94V-0.Black
Contact:Copper Alloy 0.10T,Gold Flash On Contact Area and Solder Area 50U” Min Nickel Under-Plated
Shell:Stainless Steel 0.10T,Nickel Plating Over ALL
Electrical:
Current Rating:1A
Contact Resistance:100mΩ Max.
Insulation Resistance:500MΩ Min
Dielectric Withstanding Voltage:500V R.M.S. Min
Life Test:1500 Cycles
