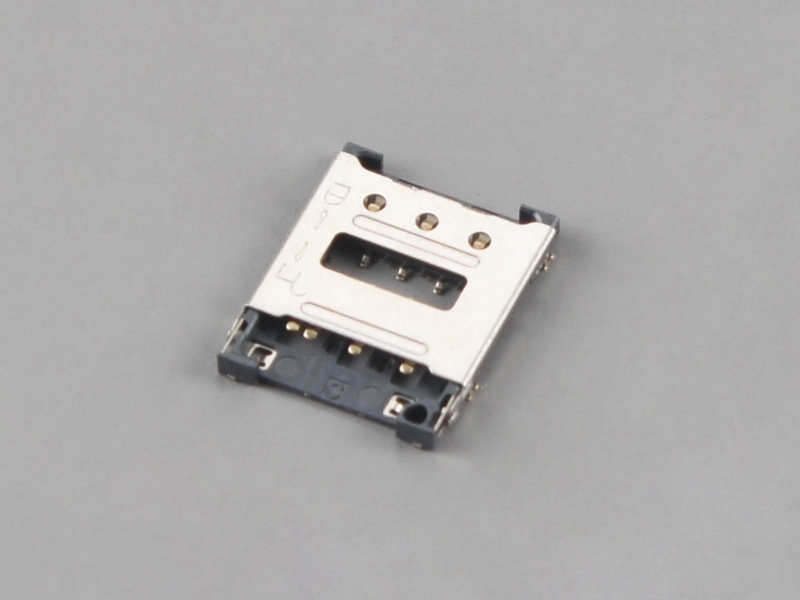

Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin
- Product Details
Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin
Material:
Housing:High Temperature Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy,Plated Gold on the contact area and solder tails,Underplated Nickel over all.
Shell:Stainless Steel,Plated gold on the solder tails,Underplated Nickel over all.
Electrical:
Rated current:0.5A Max
Rated Voltage:30V AC
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC/minute.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC
