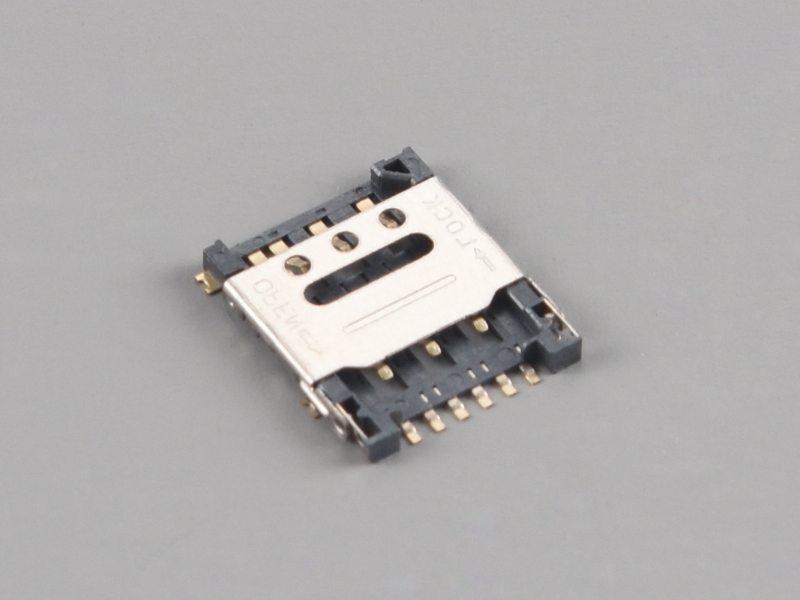

Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin

Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy,Plated 50u” Ni Overall Contact All Au 1U.
Shell:SUS.All Ni 30U MIN.

Electrical:
Current Rating:0.5A AC/DC MAX.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:80mΩ Max.
Insulation Resistance:100MΩ Min./100V DC
Mating Cycles:5000 Insertions.
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-077A.pdf
