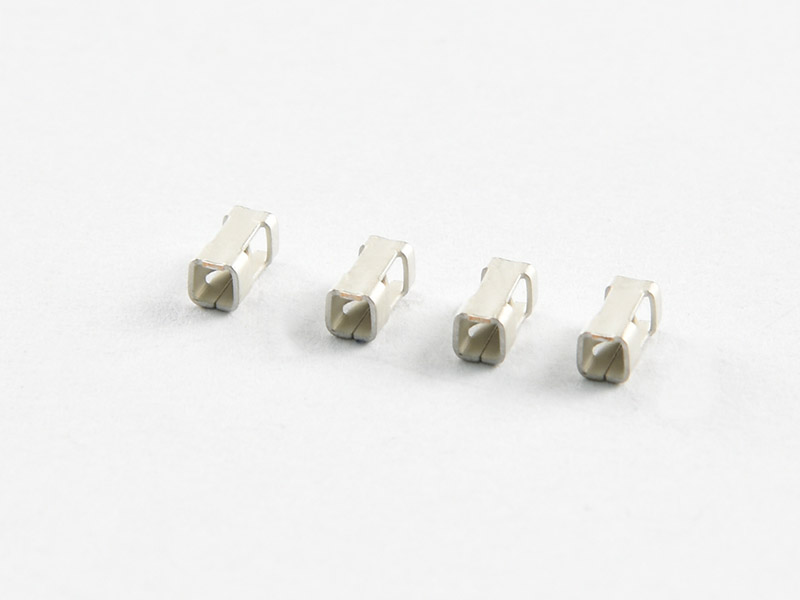

Naked Terminal SMT for led lighting,24~26AWG

Model: KLS2-L49B
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL

Contacts:Phosphor Bronze,Tin-plated

Specifications

Poles:01P

Contact Resistance:≤20mΩ

Insulation Resistance:≥800MΩ

Rated Voltage:250V AC DC

Rated Current:2.0A AC DC

Withstanding Voltage:1500V AC/minute

Temperature Range: -45 ° C ~ + 125° C
