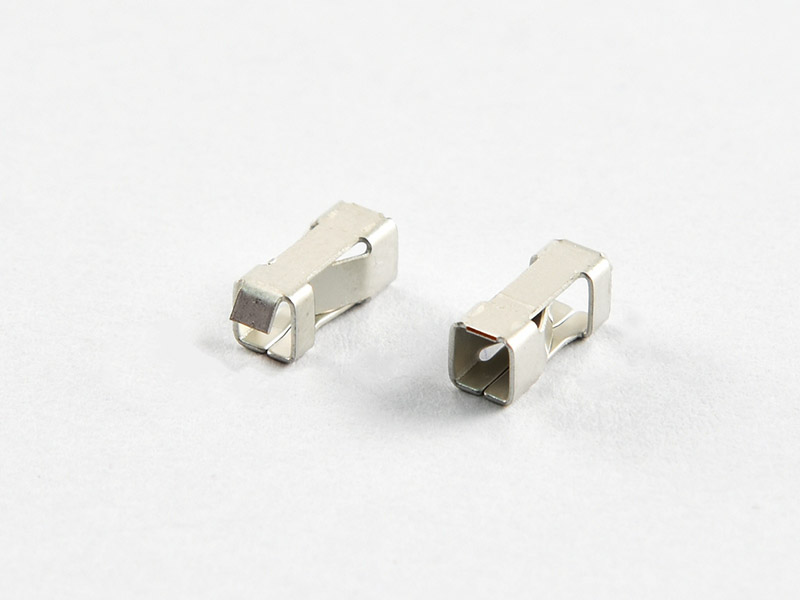

Naked Terminal SMT for led lighting,16~20AWG

Model: KLS2-L52
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Contacts:Phosphor Bronze, Tin-plated

Specifications
Poles:01P
Contact Resistance:≤20mΩ
Insulation Resistance:≥800MΩ
Rated Voltage:250V AC DC
Rated Current:3.0A AC DC
Withstanding Voltage:1500V AC/minute
Temperature Range: -40 ° C ~ + 125° C
