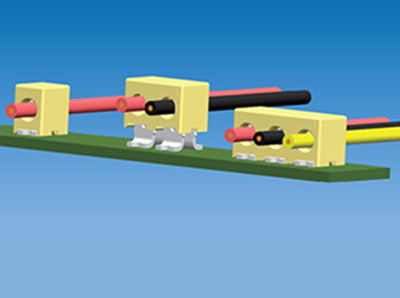

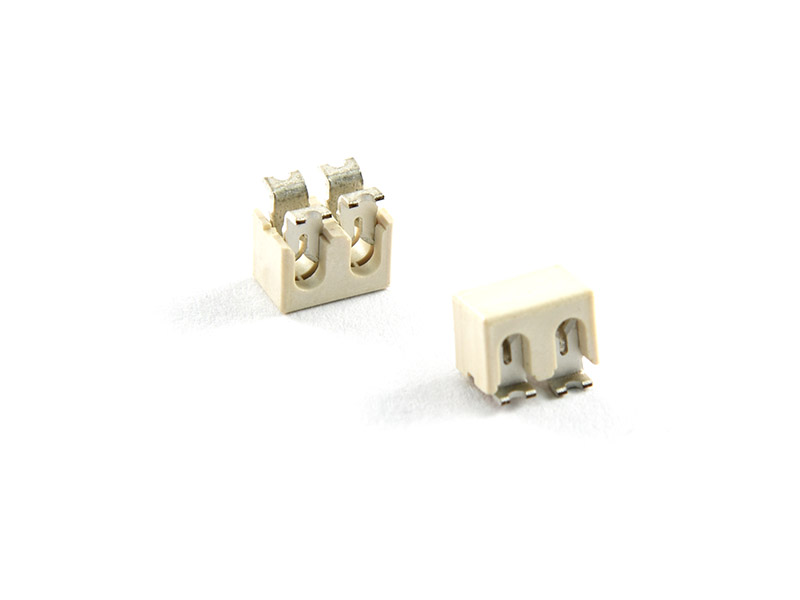

Naked IDC SMT connectors with caps
- Product Details
MATERIAL
Insulator:LCP,UL94V-0,Beige
Contacts:Brass,Tin-plated
Specifications
Poles:01~03P
Contact Resistance:≤20mΩ
Insulation Resistance:≥800MΩ
Rated Voltage:250V AC DC
Rated Current:2.0A AC DC
Withstanding Voltage:1500V AC/minute
Temperature Range: -40 ° C ~ + 120° C
