Multi Function Switch

  • Model: KLS7-MT-06
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

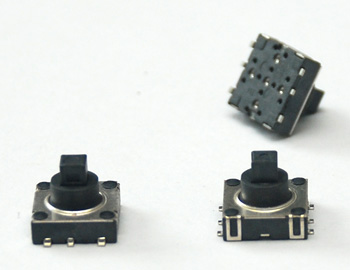

SMD Multi Function Switch

1- KLS’s Part No.

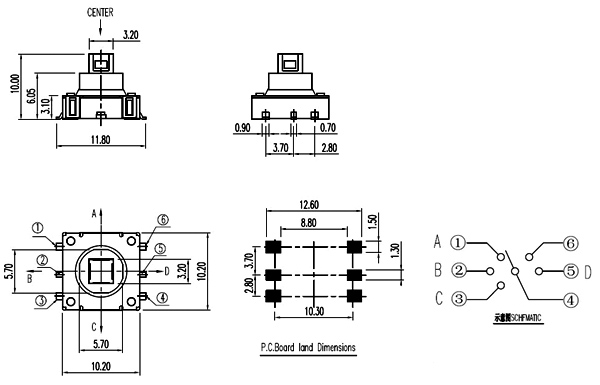

KLS7-MT-06-10.0      Size 10x10mm / 4 directions + center push / Height 10.0mm
2- Specification  :
Rating :     50mA / 12V DC
Insulation Resistance     500MΩ  min. 100V DC
Contact Resistance     500MΩ  max.
Withstand Voltage      250V AC For 1 Min
Ambient Temper.Used      -300C  to +850
Life      100000 Cycles
Operating force     4 direction 160±50 gf / center push 320±100 gf
Travel     4 direction 0.25±0.1mm / center push 0.15±0.1 gf
