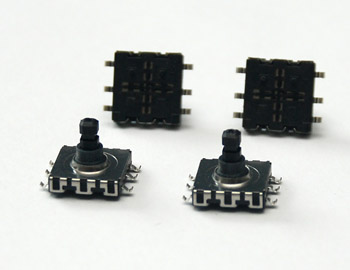

SMD Multi Function Switch
| 1- KLS’s Part No. |
|
| KLS7-MT-05-5.0 |

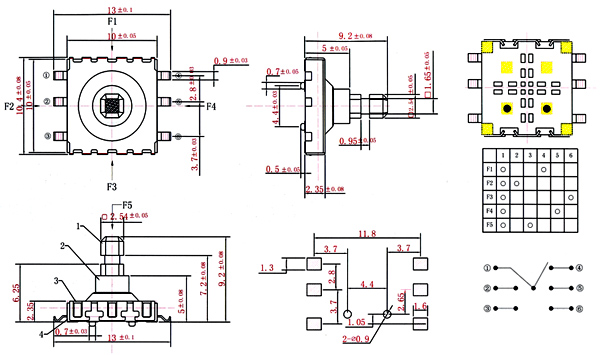

Size 10x10mm/ 4 directions + center push / Height 5.0mm |
| KLS7-MT-05-9.0 |
Size 10x10mm / 4 directions + center push / Height 9.0mm |
| 2- Specification : |
|
| Rating : |
100mA / 12V DC |
| Insulation Resistance |
500MΩ min. 100V DC |
| Contact Resistance |
500MΩ max. |
| Withstand Voltage |
250V AC For 1 Min |
| Ambient Temper.Used |
-300C to +850C |
| Life |
100000 Cycles |
| Operating force |
4 direction 160±50 gf / center push 250±100 gf |
| Travel |
4 direction 0.25±0.1mm / center push 0.15±0.1 gf |
