Multi Function Switch

  • Model: KLS7-MT-04
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

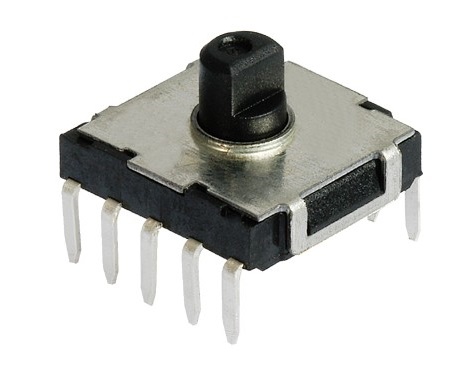

Multi Function Switch

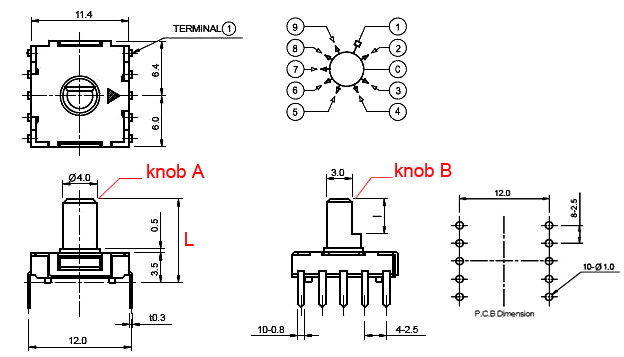

1- KLS’s Part No.
KLS7-MT-04-A-8.0      Size  11.4mm x 12.4mm / DIP Rotary Switch / L=8MM / knob A
KLS7-MT-04-A-10.0       Size  11.4mm x 12.4mm / DIP Rotary Switch / L=10MM / knob A
KLS7-MT-04-B-8.0       Size  11.4mm x 12.4mm / DIP Rotary Switch / I=8MM / knob B
KLS7-MT-04-B-10.0       Size  11.4mm x 12.4mm / DIP Rotary Switch / I=10MM / knob B
– Specification  :
Rating :     0.1A / 16V DC
Insulation Resistance     500MΩ  min. 100V DC
Contact Resistance     500MΩ  max.
Withstand Voltage      250V AC For 1 Min
Ambient Temper.Used      -300C  to +850
Life     50000 Cycles
Operating force     200+-60gf
Travel
