Multi Function Switch
- Product Details

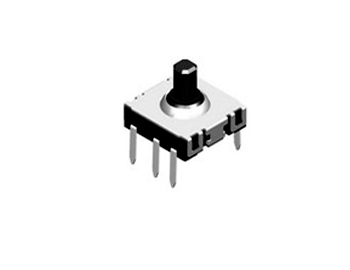

Multi Function Switch
| 1- KLS’s Part No. | |

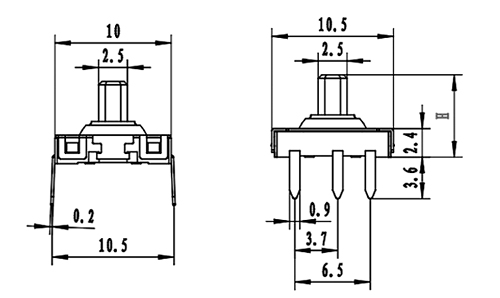

| KLS7-MT-02 | Size 10x10mm / 4 directions + center push |
| 2- Specification : | |
| Rating : | 100mA / 12V DC |
| Insulation Resistance | 100MΩ min. 100V DC |
| Contact Resistance | 500MΩ max. |
| Withstand Voltage | 250V AC For 1 Min |
| Ambient Temper.Used | -300C to +850C |
| Life | 100000 Cycles |
| Operating force | 4 direction 160±50 gf / center push 280±100 gf |
| Travel | 4 direction 0.20±0.1mm / center push 0.15±0.1 gf |
