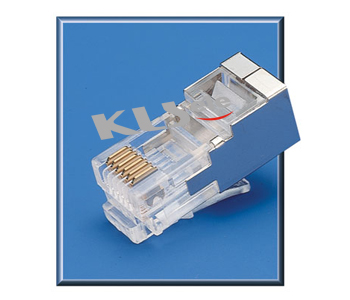

Modular Plug Shield RJ11/RJ12/RJ14/RJ25
ELECTRICAL:
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX

MECHANICAL:
CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
DURABILITY:750MATING CYCLES MINI

MATERIAL:
HOUSING: POLYCARBONATE (PC)UL 94V-0 OR UL 94V-2
CONTACT: PHOSPHOR BRONZE,HARD GOLD PLATED OVER NICKEL
SHIELDING:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
WORKING TEMPERATURE : -40°C ~80°C

KLS12-RJ12B-6P.pdf
