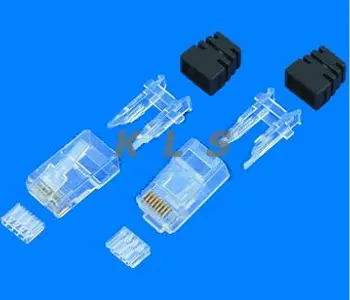

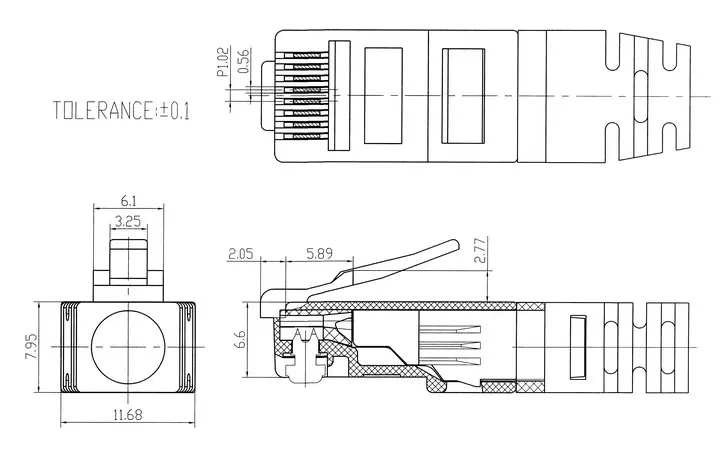

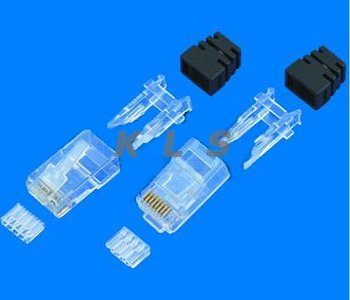

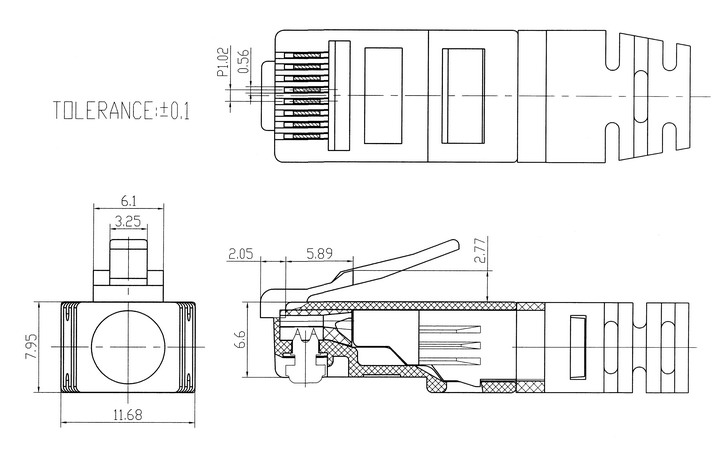

Modular Plug CAT6
MATERIAL:
1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0ABS、PBT、NYLON
2. HOUSING COLOR : BLACK、GRAY、IVORY、WHITE OR OTHERS
3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4. PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u”/3u”/6u”/15u”/30u”/50u”
5. SHIELD : 0.23 THICKNESS BRASS WITH NICKEL PLATED

ELECTRICAL:
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN ＠500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE : 1000 VAC RMS. 50Hz 1 MINUTE

MECHANICAL:
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER : 1 LB MIN

ENVIRONMENTAL:
1. STORAGE :-40℃~80℃
