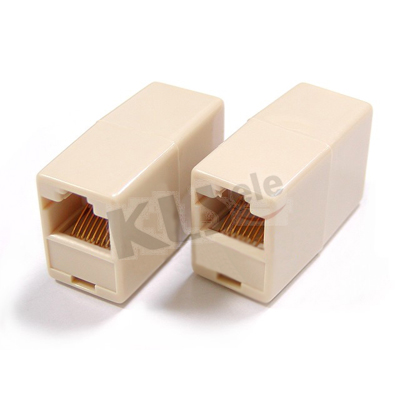

Modular Coupler RJ45
KLS12-176-8P8C

MATERIAL
HOUSING: ABS
CONTACT:PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH

ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX

WORKING  TEMPERATURE :  -35°C ~80°C
