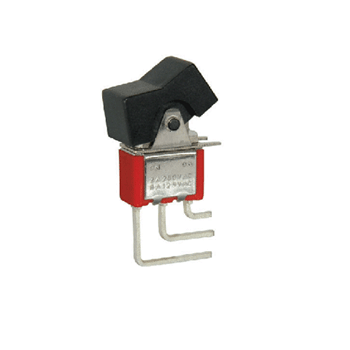

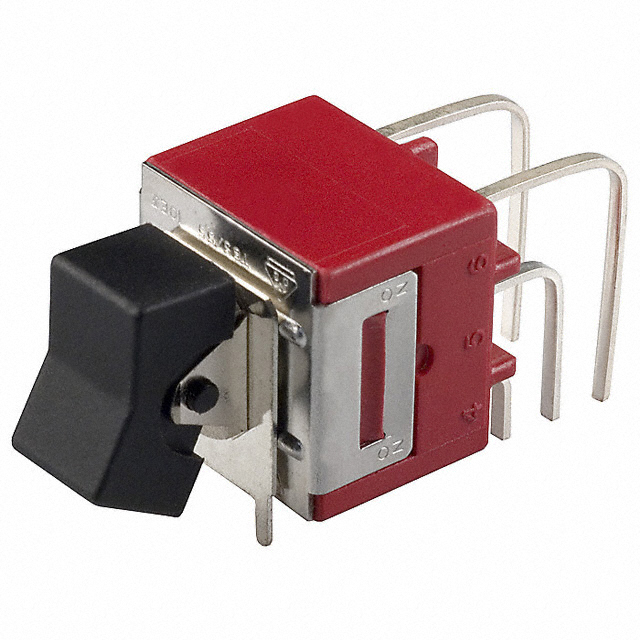

Miniature Toggle switch-Rocker

  • Model: KLS7-RLS-102-A4 / KLS7-RLS-112-A4

    KLS7-RLS-103-A4 / KLS7-RLS-113-A4/

    KLS7-RLS-123-A4 / KLS7-RLS-202-A4/

    KLS7-RLS-212-A4 / KLS7-RLS-203-A4/

    KLS7-RLS-213-A4 / KLS7-RLS-223-A4

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

KLS7-RLS-102-A4         ON-ON
KLS7- RLS -112-A4       ON-(ON)
KLS7-RLS-103-A4         ON-OFF-ON
KLS7-RLS-113-A4         ON-OFF-(ON)
KLS7-RLS-123-A4         (ON)-OFF-(ON)

KLS7-RLS-202-A4         ON-ON
KLS7- RLS -212-A4       ON-(ON)
KLS7-RLS-203-A4         ON-OFF-ON
KLS7-RLS-213-A4         ON-OFF-(ON)
KLS7-RLS-223-A4         (ON)-OFF-(ON)

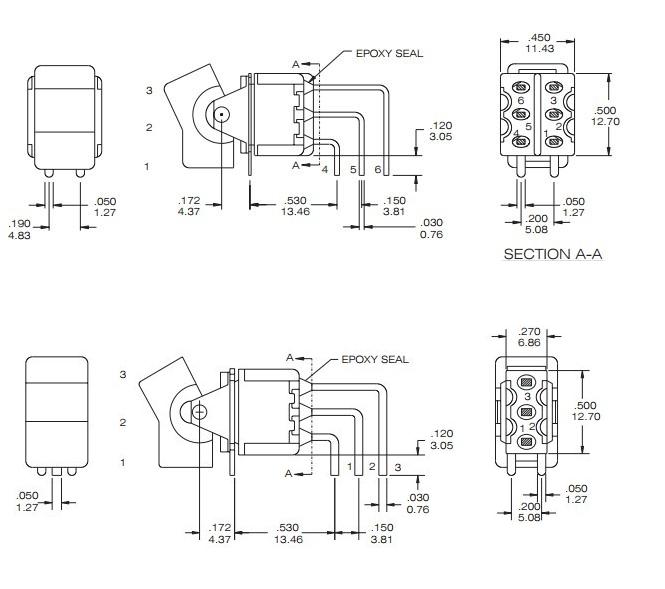

Miniature Toggle switch-Rocker Type
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
