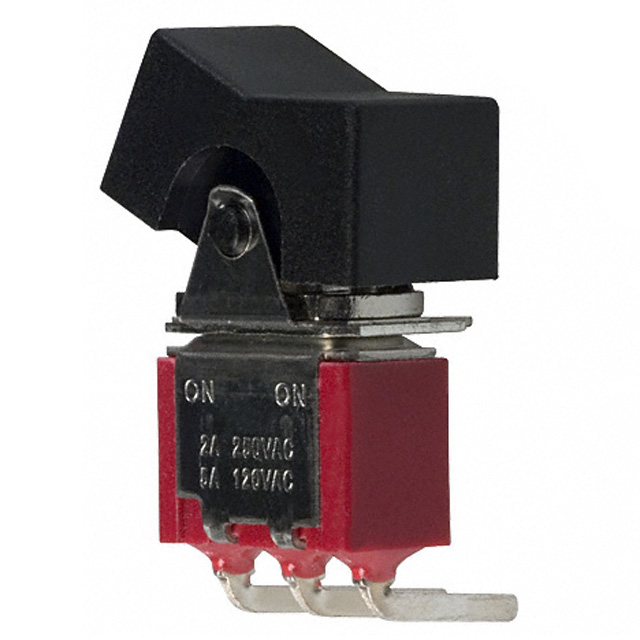

KLS7-RLS-102-A3         ON-ON
KLS7- RLS -112-A3       ON-(ON)
KLS7-RLS-103-A3         ON-OFF-ON
KLS7-RLS-113-A3         ON-OFF-(ON)
KLS7-RLS-123-A3         (ON)-OFF-(ON)

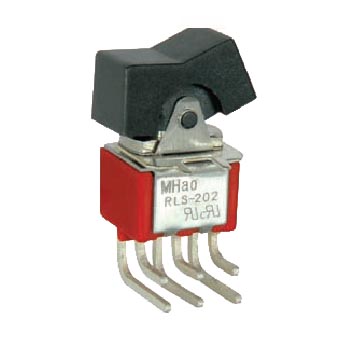

KLS7-RLS-202-A3         ON-ON
KLS7- RLS -212-A3       ON-(ON)
KLS7-RLS-203-A3         ON-OFF-ON
KLS7-RLS-213-A3         ON-OFF-(ON)
KLS7-RLS-223-A3         (ON)-OFF-(ON)

Miniature Toggle switch-Rocker Type
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
