KLS7-MS-102-A2T          ON-ON
KLS7-MS-112- A2T         ON-(ON)
KLS7-MS-103- A2T         ON-OFF-ON
KLS7-MS-113- A2T         ON-OFF-(ON)
KLS7-MS-123- A2T         (ON)-OFF-(ON)

KLS7-MS-202-A2T          ON-ON
KLS7-MS-212- A2T         ON-(ON)
KLS7-MS-203- A2T         ON-OFF-ON
KLS7-MS-213- A2T         ON-OFF-(ON)
KLS7-MS-223- A2T         (ON)-OFF-(ON)

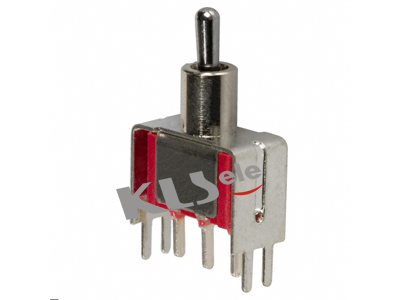

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
