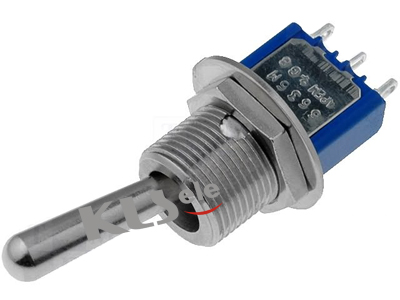

Miniature Toggle switch

  • Model: KLS7-MS-M12-A1-102 / KLS7-MS-M12-A1-112/

    KLS7-MS-M12-A1-103 / KLS7-MS-M12-A1-113/

    KLS7-MS-M12-A1-123

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

KLS7 MS-M12-102-A1          ON-ON
KLS7-MS-M12-112-A1         ON-(ON)
KLS7-MS-M12-103-A1         ON-OFF-ON
KLS7-MS-M12-113-A1         ON-OFF-(ON)
KLS7-MS-M12-123-A1         (ON)-OFF-(ON)

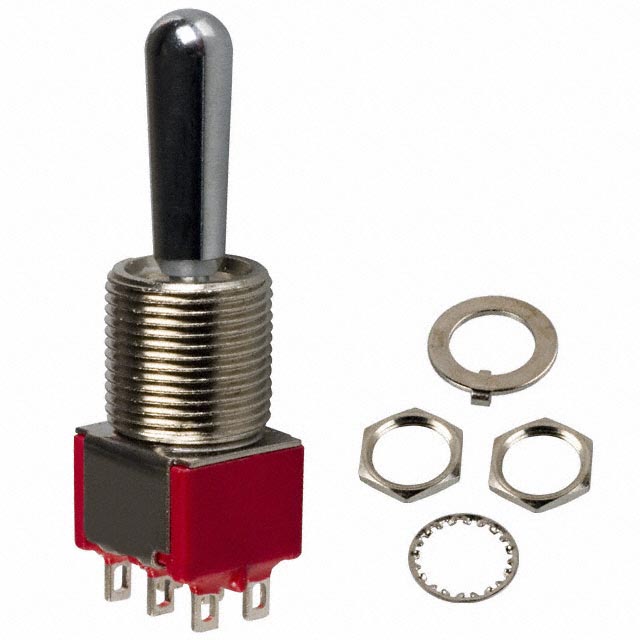

KLS7 MS-M12-202-A1          ON-ON
KLS7-MS-M12-212-A1         ON-(ON)
KLS7-MS-M12-203-A1         ON-OFF-ON
KLS7-MS-M12-213-A1         ON-OFF-(ON)
KLS7-MS-M12-223-A1         (ON)-OFF-(ON)

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
