KLS7-MS-102-F2         ON-ON
KLS7-MS-112-F2         ON-(ON)
KLS7-MS-103-F2         ON-OFF-ON
KLS7-MS-113-F2         ON-OFF-(ON)
KLS7-MS-123-F2         (ON)-OFF-(ON)

KLS7-MS-202-F2         ON-ON
KLS7-MS-212-F2         ON-(ON)
KLS7-MS-203-F2         ON-OFF-ON
KLS7-MS-213-F2         ON-OFF-(ON)
KLS7-MS-223-F2         (ON)-OFF-(ON)

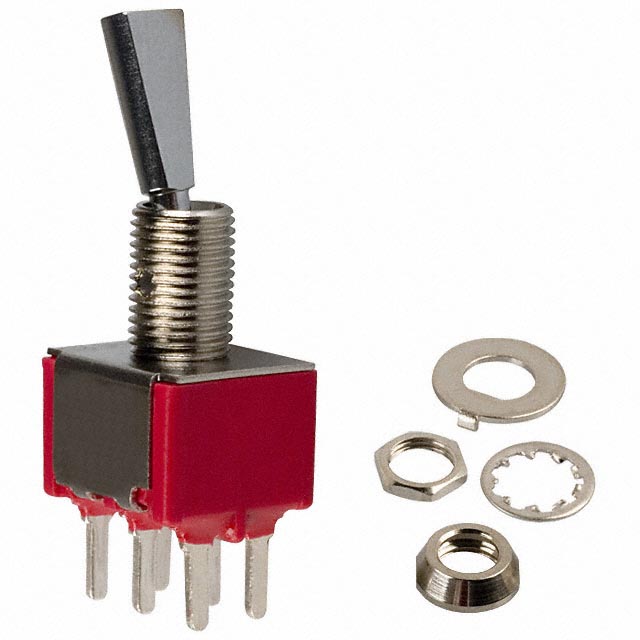

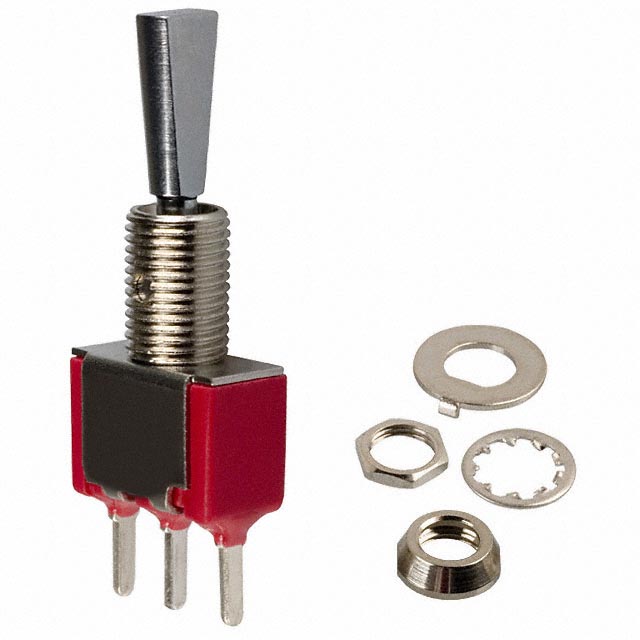

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
