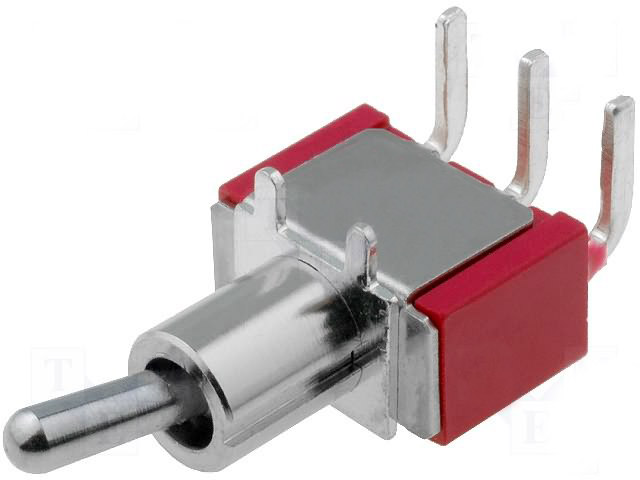

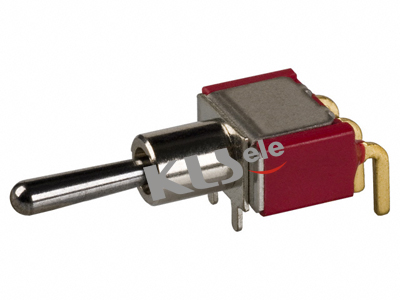

KLS7-MS-102-C3 ON-ON
KLS7-MS-112- C3 ON-(ON)
KLS7-MS-103- C3 ON-OFF-ON
KLS7-MS-113-C3 ON-OFF-(ON)
KLS7-MS-123-C3 (ON)-OFF-(ON)

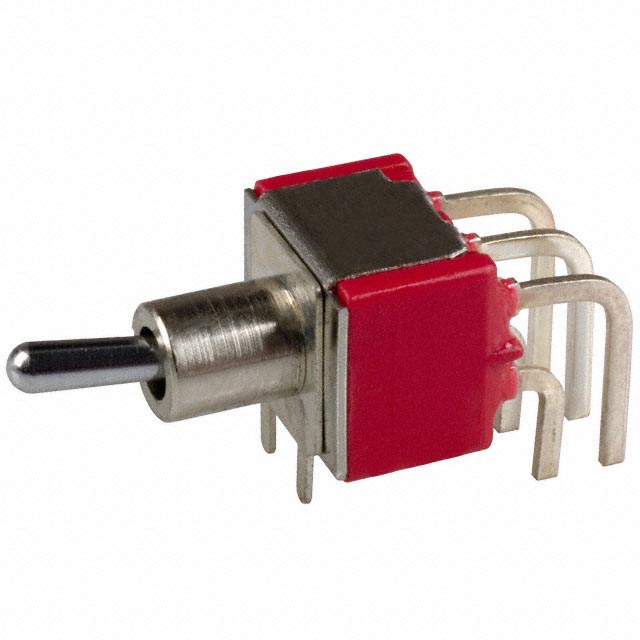

KLS7-MS-202-C3 ON-ON
KLS7-MS-212-C3 ON-(ON)
KLS7-MS-203-C3 ON-OFF-ON
KLS7-MS-213-C3 ON-OFF-(ON)
KLS7-MS-223-C3 (ON)-OFF-(ON)
Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
