KLS7-MS-302-A1 ON-ON
KLS7-MS-303-A1 ON-OFF-ON
KLS7-MS-312-A1 ON-(ON)
KLS7-MS-313-A1 ON-OFF-(ON)
KLS7-MS-323-A1 (ON)-OFF-(ON)

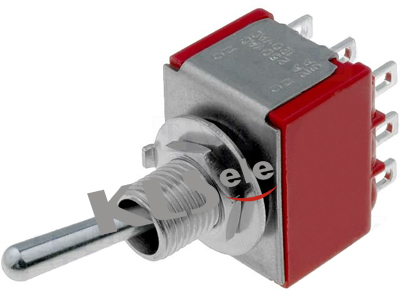

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
