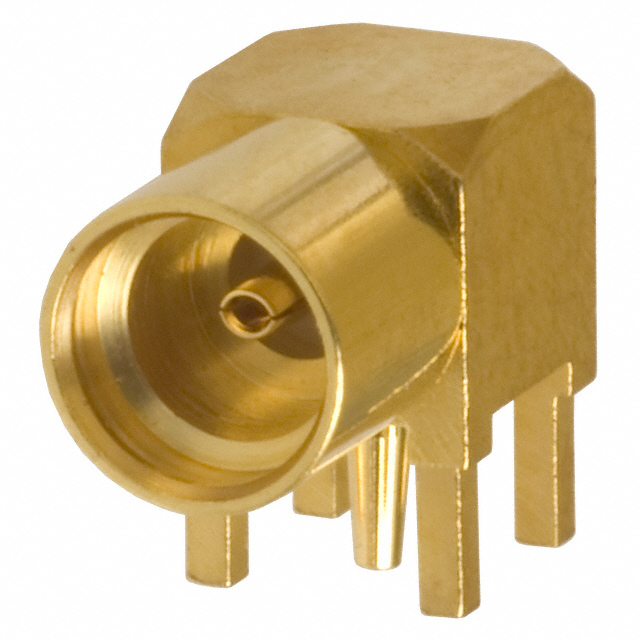

Miniature Microax RF Coaxial Connectors
- Product Details
Electrical Specifications:
Impedance:50Ω
Frequency Range:DC～6GHz
Working Voltage:170V max
Withstand Voltage:500V rms
Contact resistance
Center Contact:≤5 mΩ
Outer Contact:≤2.5 mΩ
Insulation resistance:≥1000 MΩ
VSWR Straight:≤1.15
Right angle:≤1.25
Temp range:-55～+155°C
Durability(mating):≥500（cycles）
