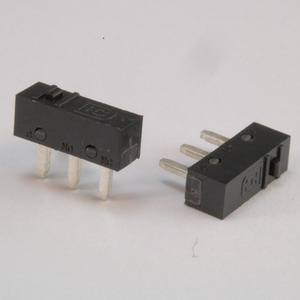

Miniature Micro Switch

SPECIFICATION:
Rating: 0.3A 6V DC

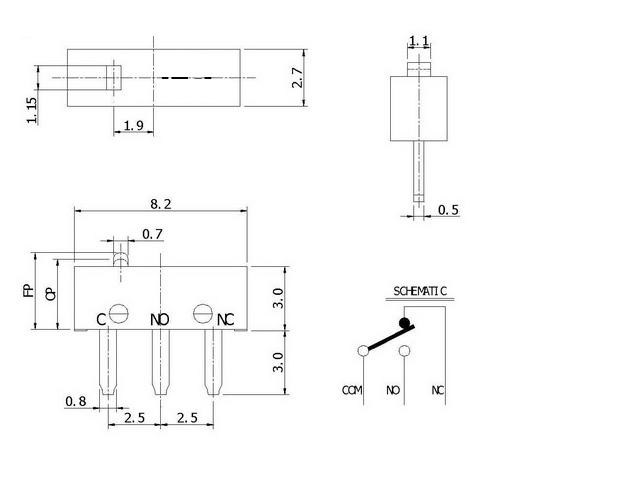

SIZE: 8.2 x 2.7 x 3.65 mm
Pitch: 2.5 mm

Operating Force: 40g

Withatand Voltage: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 300MΩ

Operating Temperature: -25oC ~ +80oC

Mechanical Life: 1000,000 Cycles

Electrical Life: 1000,000 Cycles
