Mini T Plug battery Connector
- Product Details

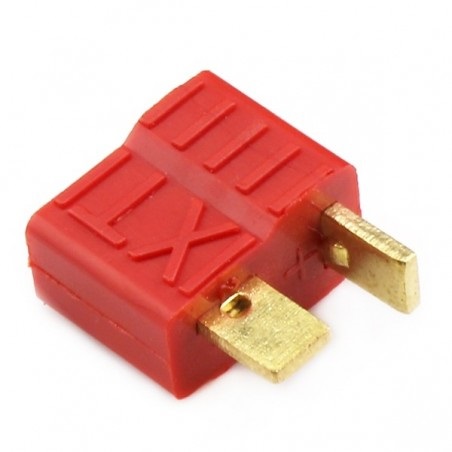

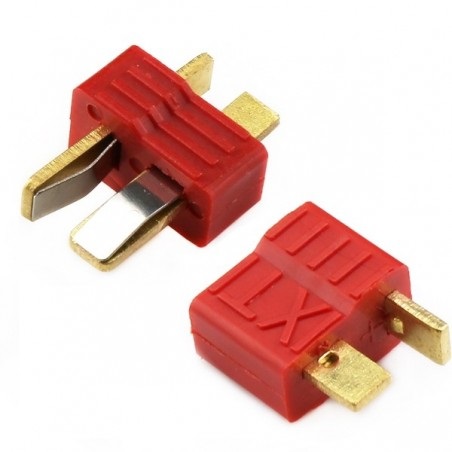

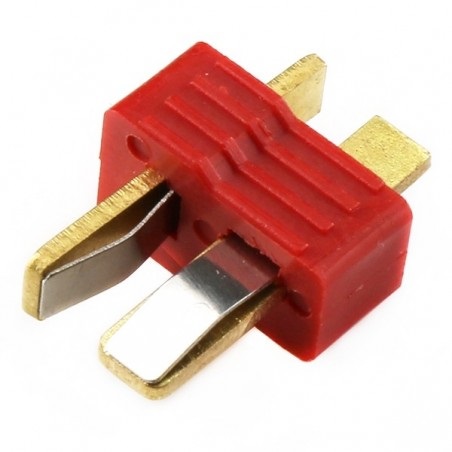

T Plug Deans Connectors Female & Male
| Product model: Male: KLS1-XT01B-M Female: KLS1-XT01B-F |
Application:Lithium battery / controller / charger |
| Product color: Blue | Metal material: Brass Gold Plated |
| Instantaneous current: 40A | Recommended wire gauge: 12 # / 14 # / 16# |
| Rated current: 20A | Insulation material: PA66 |
| Contact resistance: 1.0m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
| Withstand voltage: DC 500V | Plug times:1000 times |
| Flame retardant grade: UL94-V0 |
