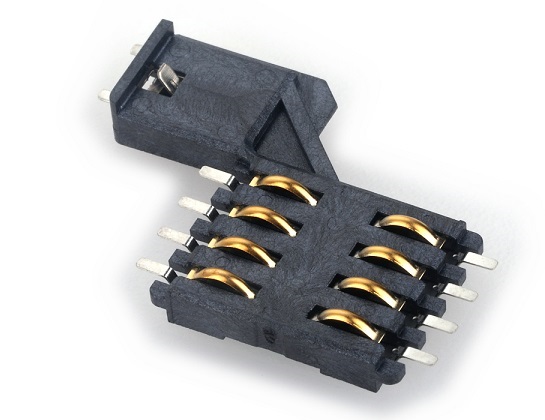

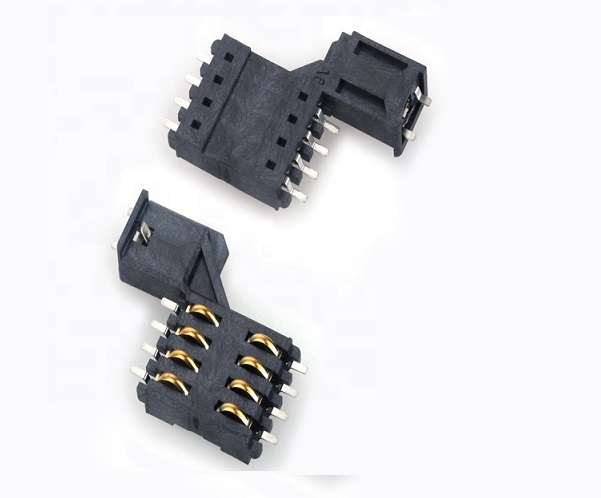

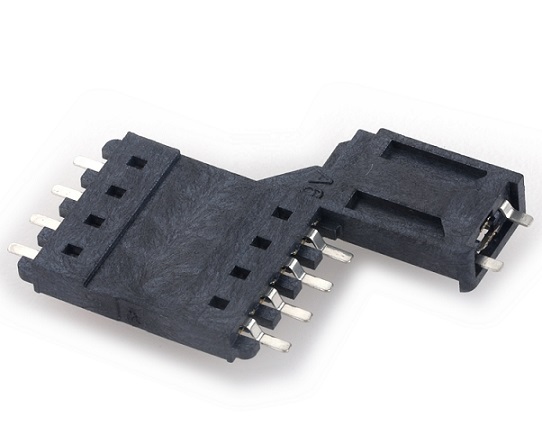

Mini Smart Card Connector,8P+2P,With Switch amphenol
- Product Details
Mini Smart Card Connector,8P+2P,With Switch amphenol
Electrical Characteristics
Contact resistance:50mΩ typical,100mΩ max
Insulation resistance:>1000Ω/500V DC
Durability:5,0000 cycles min
Solderability
Vapor phase:215℃,30sec.Max
IR reflow:250℃,5sec.Max
Manual soldering:370℃,3sec.Max
Environmental Characteristics
Operating temperature:-40℃- +85℃
Operating humidity:10%- +95%RH
