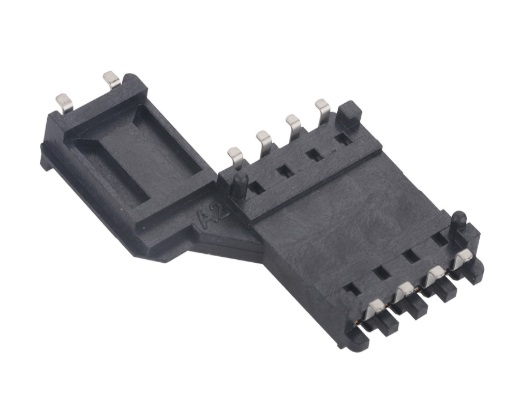

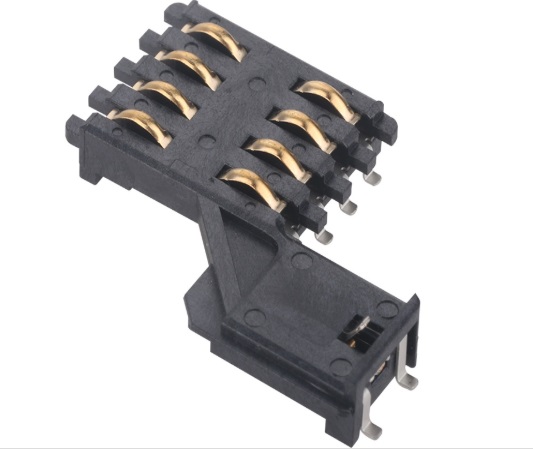

Mini Smart Card Connector,8P+2P,With Switch

  • Model: KLS1-SCC-C737
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Mini Smart Card Connector,8P+2P,With Switch

Electrical Characteristics
Contact resistance:50mΩ typical,100mΩ max
Insulation resistance:>1000Ω/500V DC
Durability:5,0000 cycles min
Solderability
Vapor phase:215℃,30sec.Max
IR reflow:250℃,5sec.Max
Manual soldering:370℃,3sec.Max
Environmental Characteristics
Operating temperature:-40℃- +85℃
Operating humidity:10%- +95%RH
