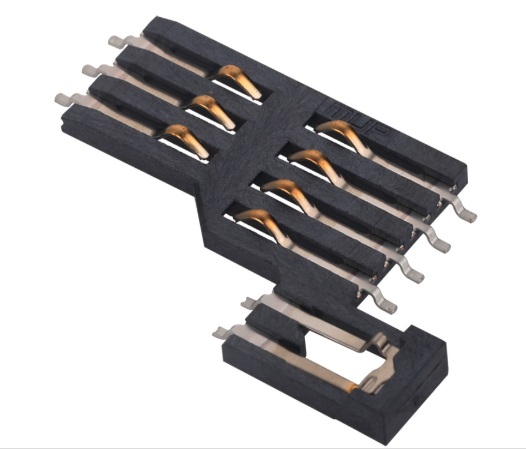

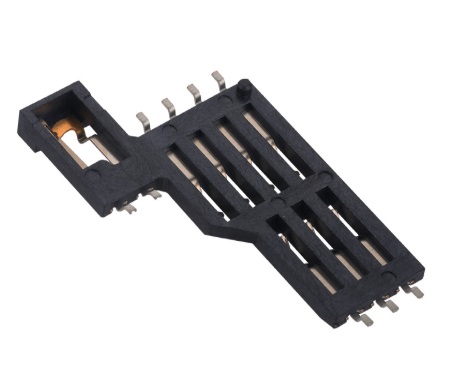

Mini Smart Card Connector,8P+2P,with CD Pin

Material:
Housing:LCP(NY 9T),UL94V-0.
Contact:Selective Gold Flash.

Electrical:
Voltage Current Rating:1A 50V AC
Insulation Resistance:1000MΩ Min.
Contact Withstanding Voltage:AC500V For 1 Minute.
Durability:100,000 cycles min
Operating Temperature: -45ºC~+85ºC
