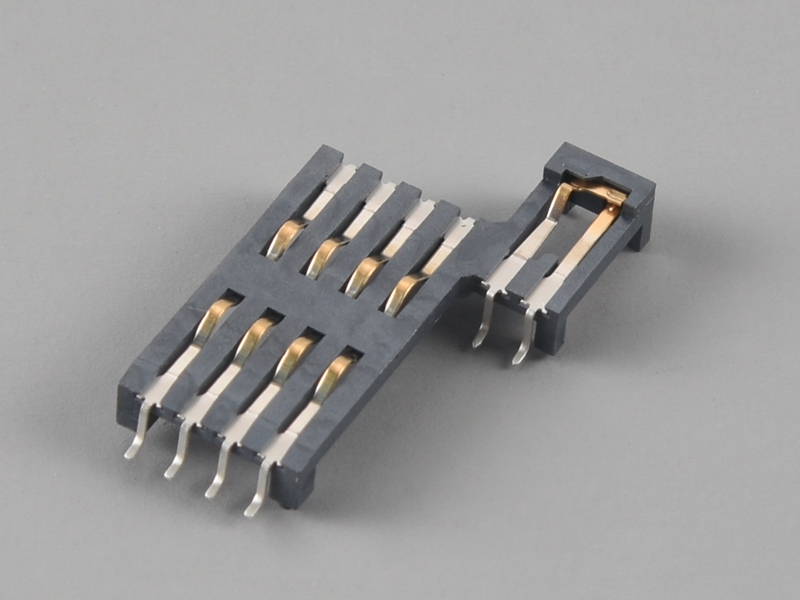

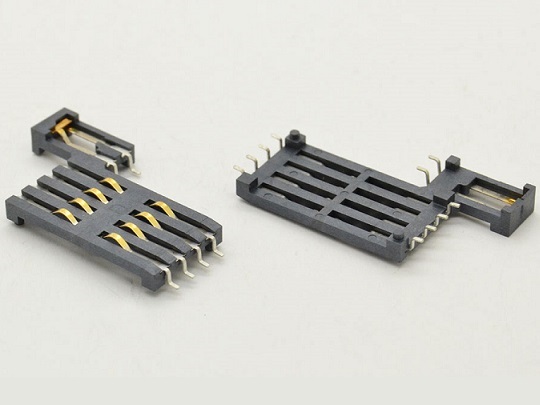

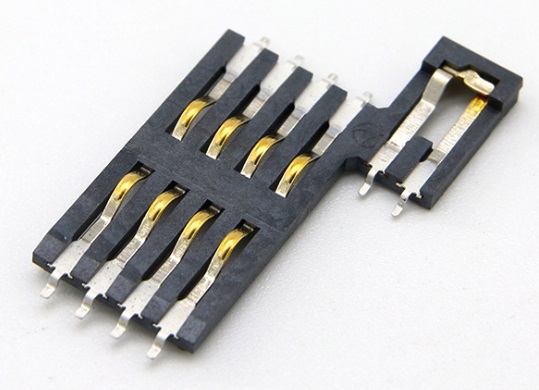

Mini Smart Card Connector,8P+2P,with CD Pin

  • Model: KLS1-SIM-045
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Mini Smart Card Connector,8P+2P,with CD Pin

Material:
Housing:LCP(NY 9T),UL94V-0.
Contact:Selective Gold Flash.
Electrical:
Voltage Current Rating:1A 50V AC
Insulation Resistance:1000MΩ Min.
Contact Withstanding Voltage:AC500V For 1 Minute.
Durability:100,000 cycles min
Operating Temperature: -45ºC~+85ºC
