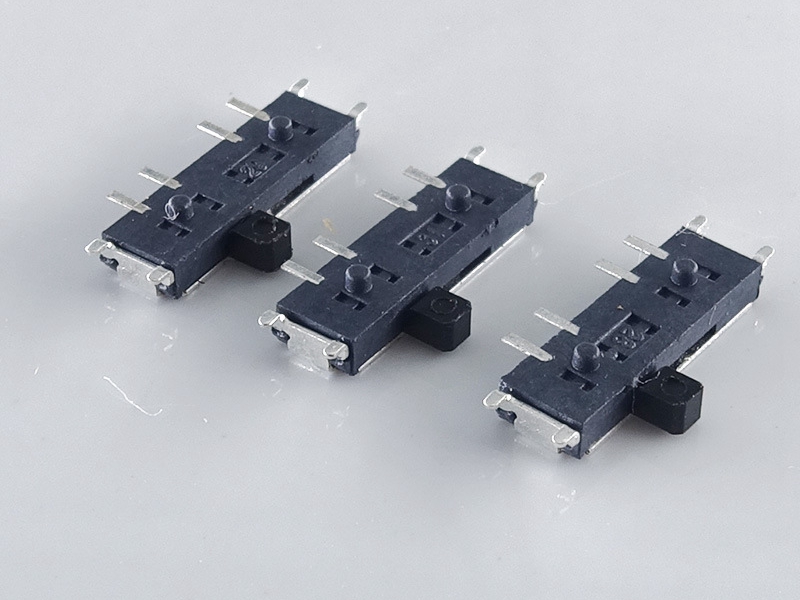

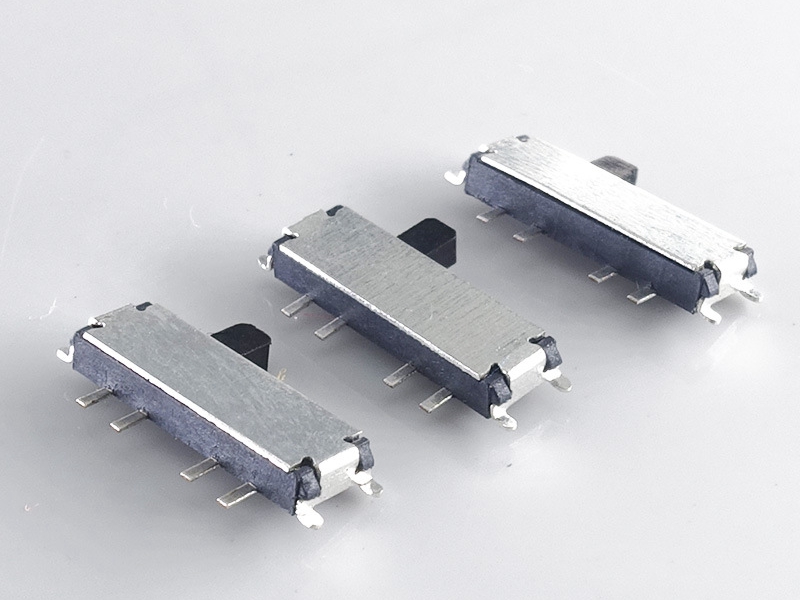

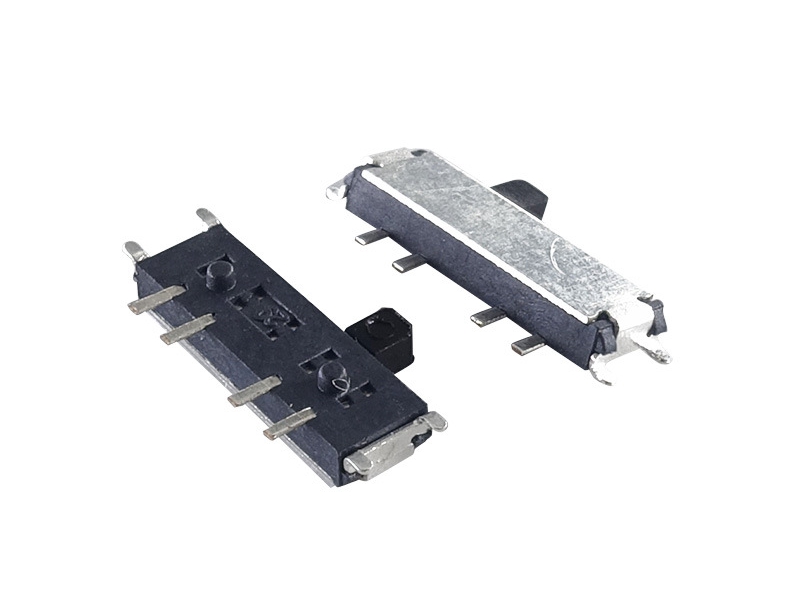

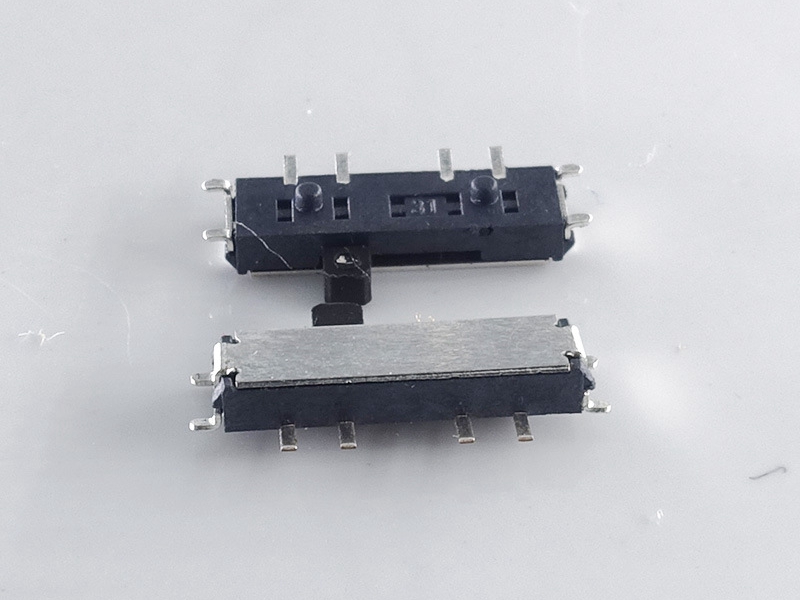

Mini Slide Switch, 9.7×2.7×1.4mm,1P3T SMD

  • Model: KLS7-MSS-1300BP
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

ELECTRICAL
Rating: 0.3A 6V DC
Function: 1P3T
Timing: Non-shorting
Contact Resistance: 70mΩ Max.
Insulation Resistance:100MΩ Min. at 500V DC
Dielectric Strength: AC 500V for 1 min
Operating Temper: -20°C ~+75°C
Operating Force: 250 ± 150gf
Life Test: 10000 Cycles
PACKING: 3000PCS/Reel
