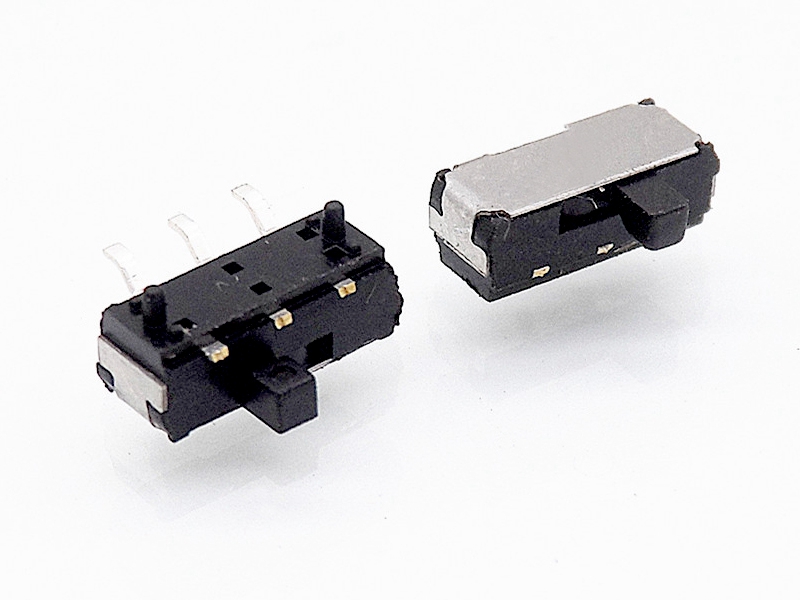

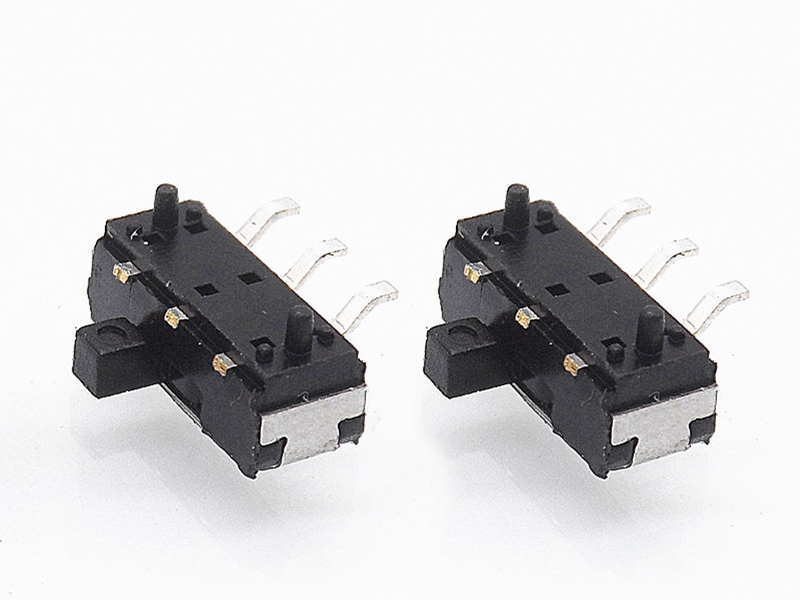

Mini Slide Switch, 9.0×3.5×3.5mm,SPDT SMD Horizontal

Model: KLS7-MSS-1245S
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

ELECTRICAL
Rating: 0.3A 30V DC
Function: 1P2T
Timing: Non-shorting
Contact Resistance: 70mΩ Max.
Insulation Resistance:100MΩ Min. at 500V DC
Dielectric Strength: AC 500V for 1 min
Operating Temper: -20°C ~+80°C
Operating Force: 250 ± 150gf
Life Test: 10000 Cycles

PDF

KLS7-MSS-1245S.pdf
