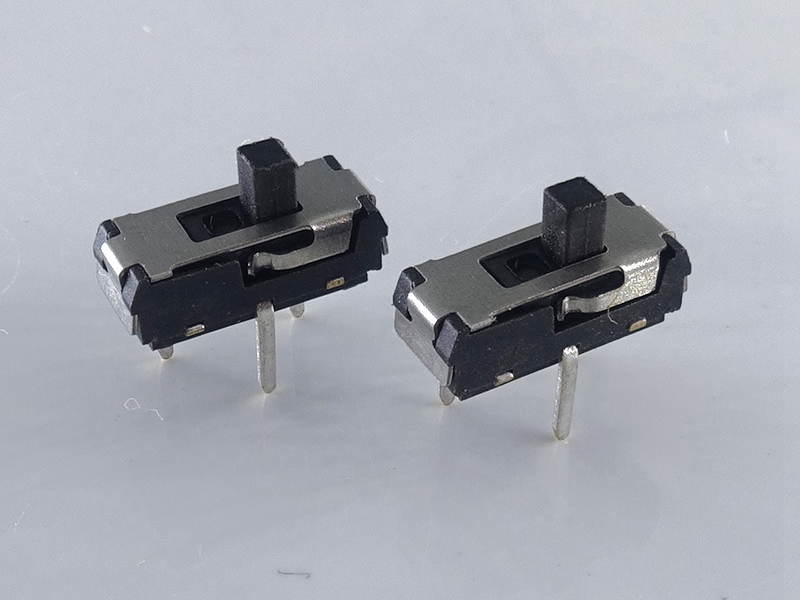

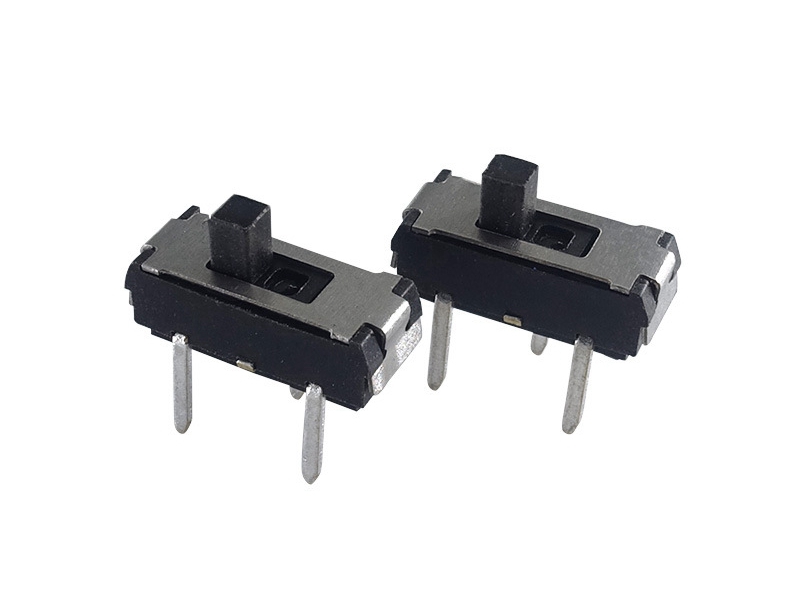

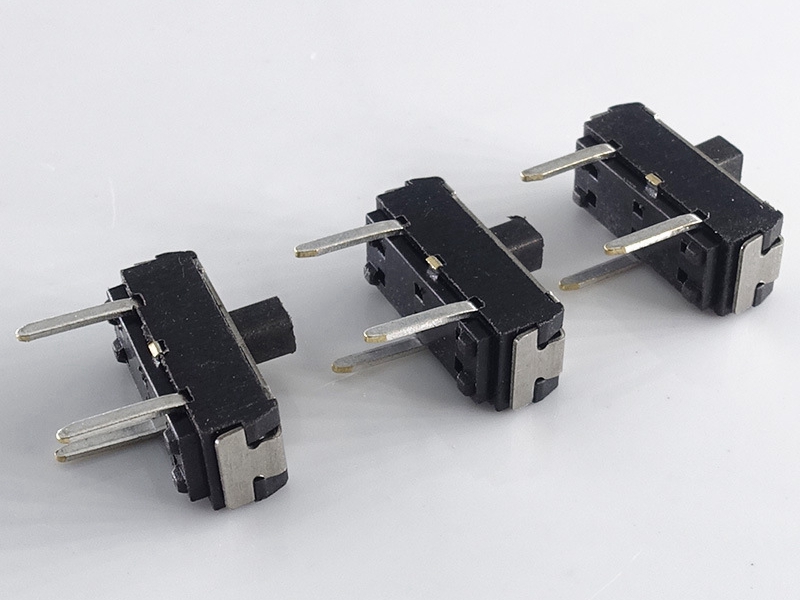

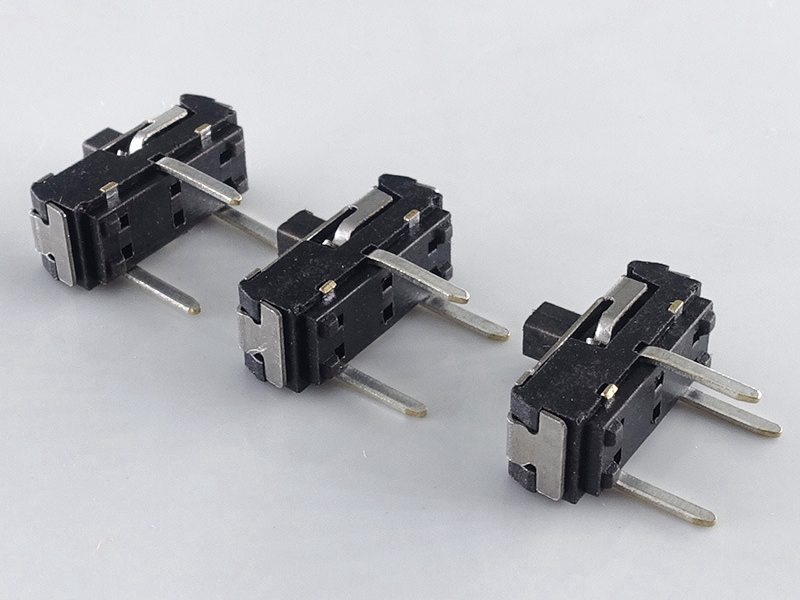

Mini Slide Switch, 9.0×3.5×3.5mm,SPDT DIP

  • Model: KLS7-MSS-1235
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF
ELECTRICAL
Rating:                       0.3A 6V DC
Function:                    1P2T
Timing:                        Non-shorting
Contact Resistance:    70mΩ Max.
Insulation Resistance:100MΩ Min. at 500V DC
Dielectric Strength:    AC 500V for 1 min145
Life Test:                  10000 Cycles
