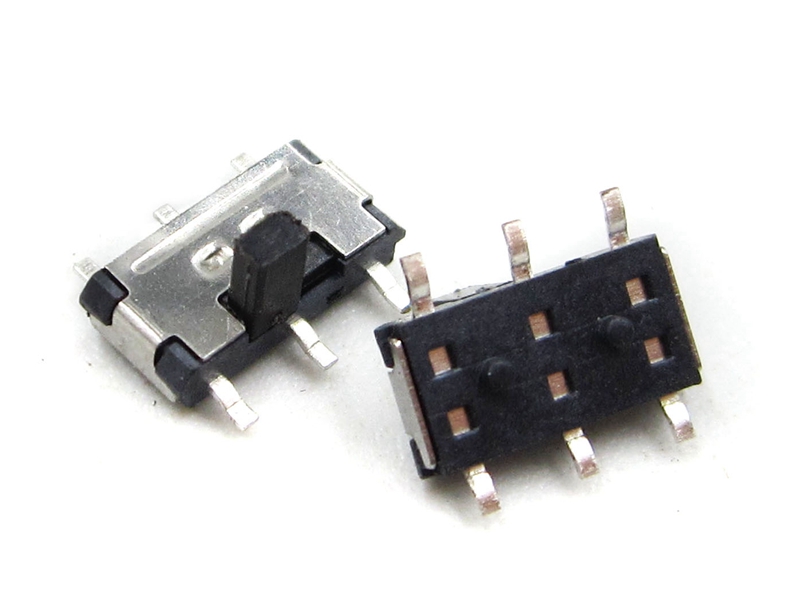

Mini Slide Switch, 7.2×3.5×1.5mm,DPDT SMD Vertical
- Product Details
ELECTRICAL
Rating: 0.3A 30V DC
Function: 2P2T
Timing: Non-shorting
Contact Resistance: 70mΩ Max.
Insulation Resistance:100MΩ Min. at 500V DC
Dielectric Strength: AC 500V for 1 min
Operating Temper: -20°C ~+75°C
Operating Force: 170 ± 50gf
Life Test: 10000 Cycles
PACKING: 1000PCS/Reel
