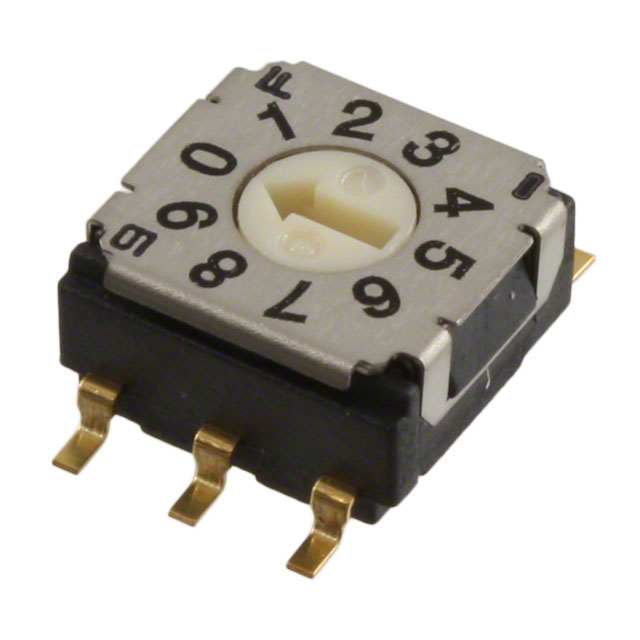

Mini Rotary Code Switch:10 Positions

ELECTRICAL:
Switching Rating: 100mA 42V DC
Non-Switching Rating: 400mA 42V DC
Operation Force: 120gf
Insulation Resistance: 100 MΩ Min.
Contact Resistance: 80MΩ Max.
Operating Temperature: -45oC ~ +125oC
Electrical Life: 25,000 Cycles
Sealing: IP67 water proof

Solder Condition:
Reflow soldering:10s/260oC
Iron soldering:4s/350oC
Wave soldering:5s/280oC
