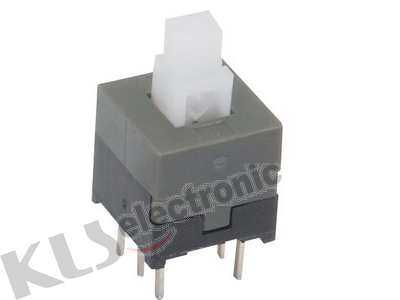

Mini Push Switch 8.5×8.5mm

SPECIFICATION:
Rating: 0.3A 30V DC
Operating Force: 200 ± 80g
Withatand Voltage: AC 250V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 50MΩ
Operating Temperature: -40oC ~ +80oC
Mechanical Life: 100,000 Cycles
Electrical Life: 10,000 Cycles

FUNCTION:
0 = Non Lock Type

1 = With Lock Type

KLS7-P8.5x8.5.pdf
