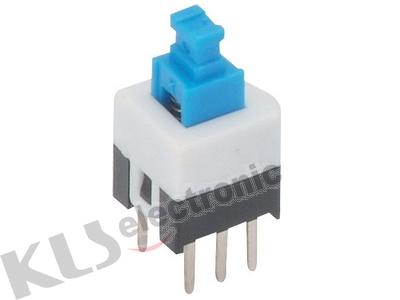

Mini Push Switch 7.0×7.0mm

  • Model: KLS7-P7.0X7.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Mini Push Switch 7.0×7.0mm

SPECIFICATION:
Rating: 0.1A 30V DC
Operating Force: 160 ± 80g
Withatand Voltage: AC 125V 1 Minute
Insulation Resistance: 100 MΩ Mim. 125V DC
Contact Resistance: 100MΩ
Operating Temperature: -40oC ~ +80oC
Mechanical Life: 100,000 Cycles
Electrical Life: 10,000 Cycles

FUNCTION:
0 = Non Lock Type

1 = With Lock Type
