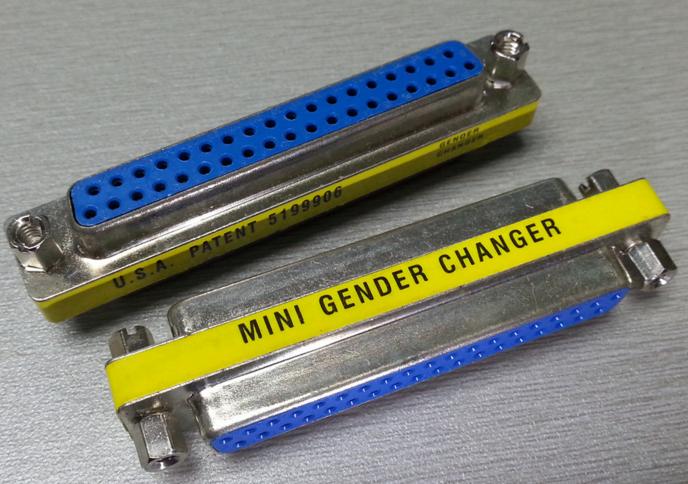

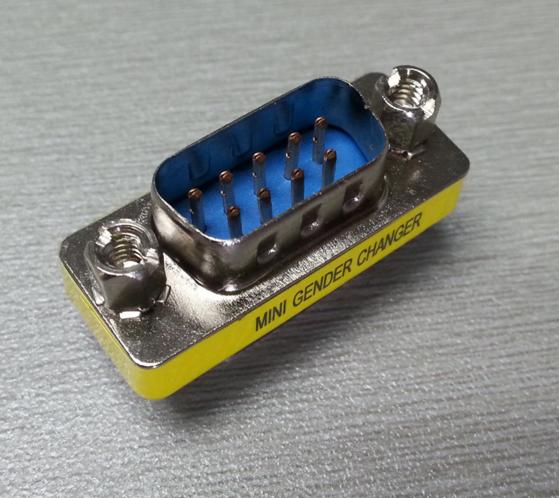

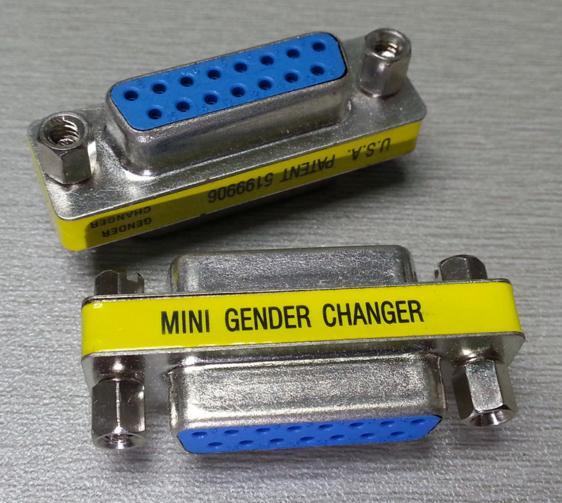

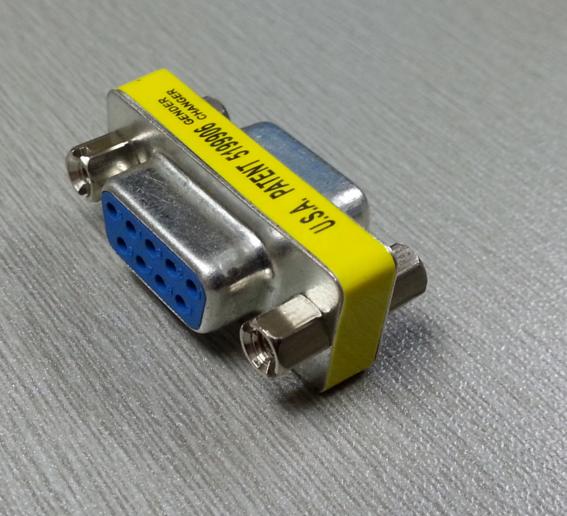

Mini Gender Changer Connector 2 Row

Order Information
KLS1-185-9M/9M-L
9M/9M-No.of pin (9/9,9/25,15/15,25/25,37/37)
M-Male    F-Female
L-Blue     B-Black

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u” Tin Over 50u” min Nickel
Clinch Nut: Brass, 100u” min Nickel Plated
Screwlock: Brass, 100u” min Nickel Plated
Electrical Characteristics:
Current Rating: 3AMP or 5 AMP
Insulator Resistance: 1000M ohms min. at DC 500V
Contact Resistance: 25m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
