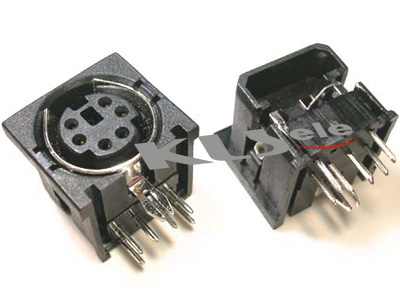

Mini Din jack Connector

How to order Example:
KLS1-285A-4-B
285A-Without Shielded
4-4 Pins  Or-3 Pin,5 Pin,6 Pin,7 Pin,8 Pin
B-Black  G-Green

MATERAL
Insulator:PBT UL 94V-0 or PPS
Shell:Brass,Nickel / Tin Plated or Tin Plated
Contact:Phosphor Bronze,Gold /Tin plated
ELECTRICAL
Contact current Rating:2 A 100V AC
Dielectric Withstanding:250V AC 1 min.
Insulation Resistance:5000M OHM min AT 500V DC
Contact Resistance::30m ohm Max.
Operating Temperature: -45ºC~+105ºC

KLS1-285A.pdf
