Mini Din Jack

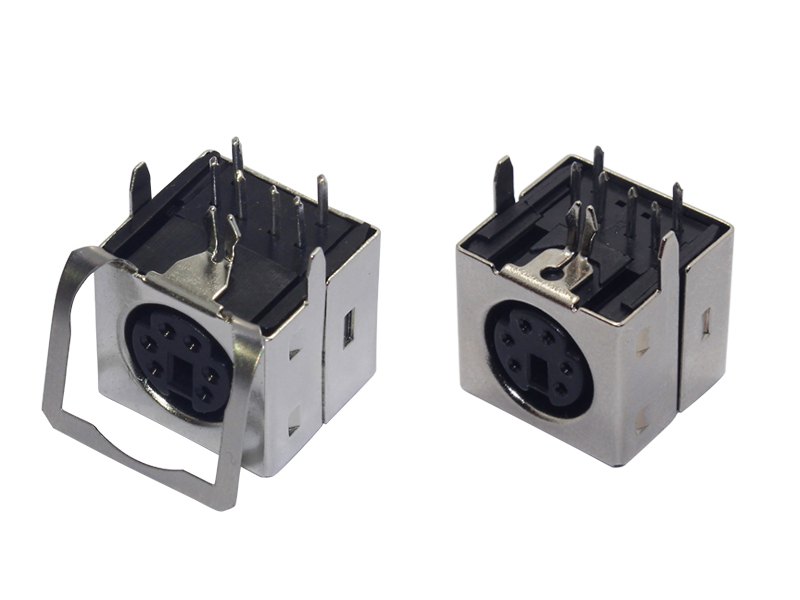

Mini Din circular jack:
How to order Example:
KLS1-155-04-B-0
04=4 PIN  Or-3 Pin,5 Pin,6 Pin,7 Pin,8 Pin
B=Black  G=Green  P=Purple

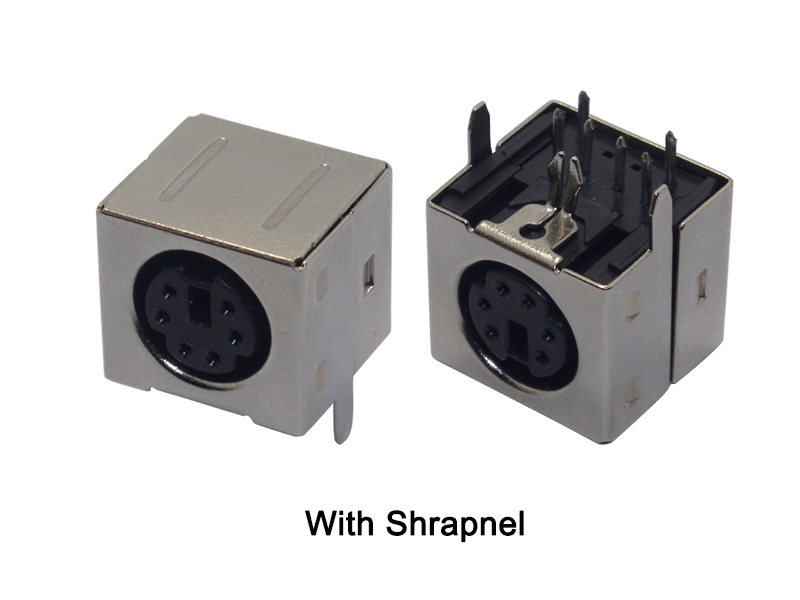

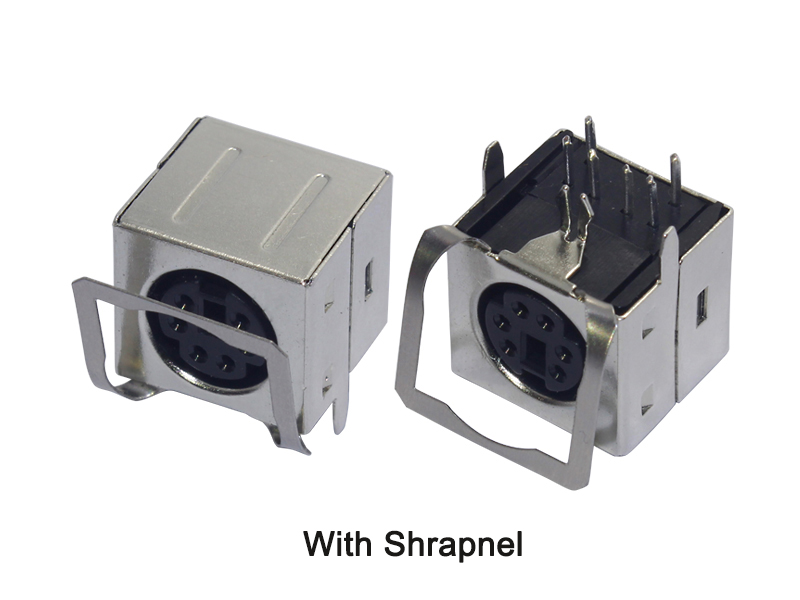

0=Without Shrapnel 1=With Shrapnel

MATERAL
Insulator:PBT UL 94V-0 or PPS
Shell:Brass,Nickel / Tin Plated or Tin Plated
Contact:Phosphor Bronze,Gold /Tin plated
ENVIRONMENTAL
Operating Temperature:-55 C ~ + 105 C
ELECTRICAL
Contact current Rating:1 A 100V AC
Dielectric Withstanding:250V AC 1 min.
Insulation Resistance:5000M OHM min AT 500V DC
CONTACT RESISTANCE:30m ohm Max.
